Dell PowerEdge C6615 Server Node

Processor

• One AMD EPYC™ processor with up to 64 cores.

Cooling options

• Air cooling

Operating System

• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• RedHat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi/vSAN

Chipset

• AMD chipset

Memory

• DIMM Speed
  • Up to 4800 MT/s
• Memory Type
  • RDIMM
• Memory Module Slots
  • 6 DDR5 DIMM slots
• Maximum RAM
  • RDIMM 384 GB (6 x 64 GB) max

Storage

• Front Bays
  • Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) drives max 61 TB
  • Up to 16 x 2.5-inch SATA/NVMe drives on the Universal Backplane configuration

Storage Controllers

• Internal Controllers
  • PERC H755N
  • PERC H355
• Internal Boot
  • PERC H755N
  • PERC H355
• Software RAID
  • S160
  • Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs 480 GB or 960 GB
• Internal 12 Gbps SAS HBAs (non-RAID)
  • Internal HBA355i

Security

• AMD Secure Encrypted Virtualization (SEV)
• AMD Secure Memory Encryption (SME)
• Cryptographically signed firmware
• Secure Boot
• Secure Erase
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
• Secured Component Verification (Hardware integrity check)
• Data at Rest Encryption (SEDs with local or external key mgmt)

Management

• Embedded / At-the-Server
• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module

Consoles

• OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin
• CloudIQ for PowerEdge plug in
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center

Mobility

• OpenManage Mobile

Tools

• iDRAC RESTful API with Redfish
• IPMI
• RACADM CLI
• Dell System Update
• Enterprise Catalogs
• Dell Repository Manager

OpenManage Integrations

• BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• RedHat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager

Power Supplies

• 3200W 277 VAC or 336 VDC redundant, hot swap
• 2800W Titanium 200-240 VAC or 240 VDC redundant, hot swap
• 2400W Platinum 100-240 VAC or 240 VDC redundant, hot swap
• 1800W Titanium 200-240 VAC or 240 VDC redundant, hot swap

Fans

• Up to 4 cold swap fans

Ports

• Network Options
  • 1 x OCP 3.0 Gen5
  • 1 x 1GbE LOM

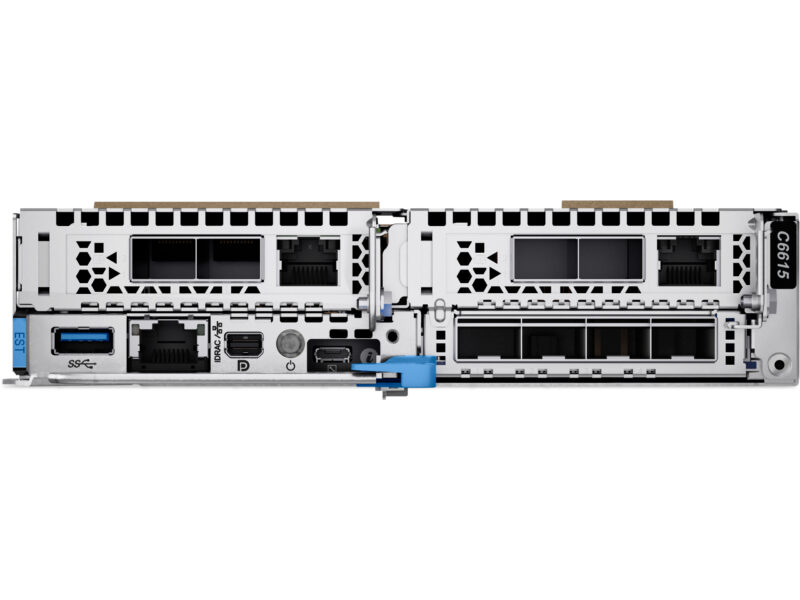

• Rear Ports
  • 1 x USB 3.0
  • 1 x iDRAC ethernet port
  • 1 x iDRAC Direct (Micro-AB USB) port
  • 1 x Mini-DisplayPort
• Internal Ports
  • 1 x USB 3.0 (optional)

Slots

• PCIe
  • Up to 2 x16 Gen5 PCIe slots

Form Factor

• Up to 4 independent hot-swappable 1-socket C6615 sleds in a 2U C6600 chassis

Dimensions & Weight

• Height
  • 40.0 mm (1.57 inches)
• Width
  • 174.4 mm (6.86 inches)
• Depth
  • 549.7 mm (21.64 inches)
  • 561.3 mm (22.10 inches) – SAS/SATA or NVMe or E3.S or Universal configuration
• Weight
  • 3.7 kg (8.15 pounds)
