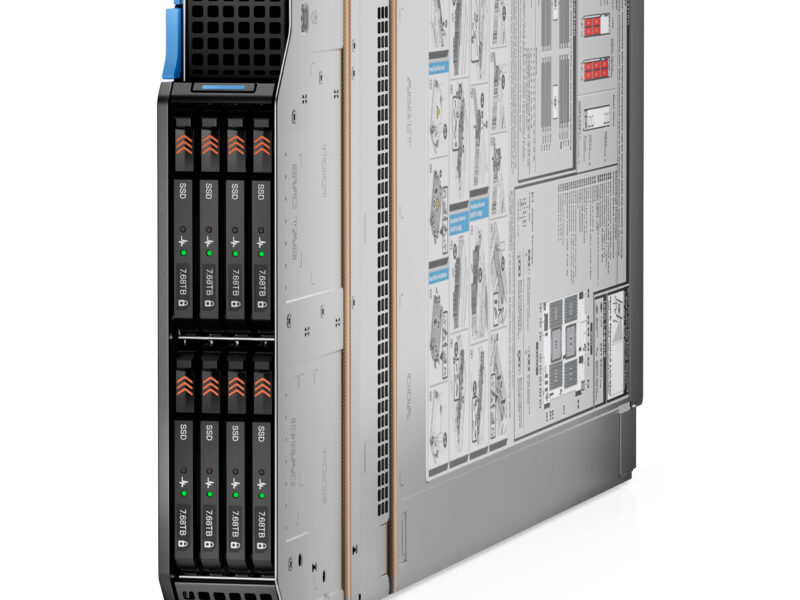

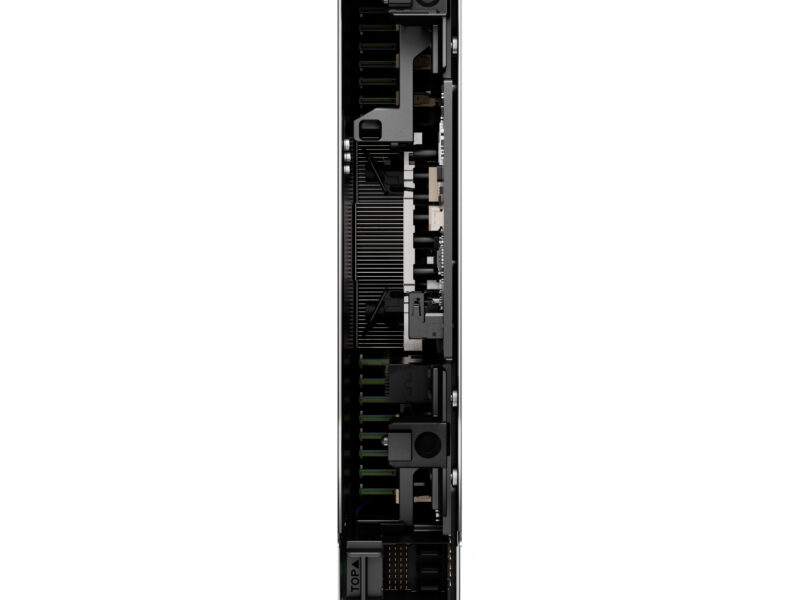

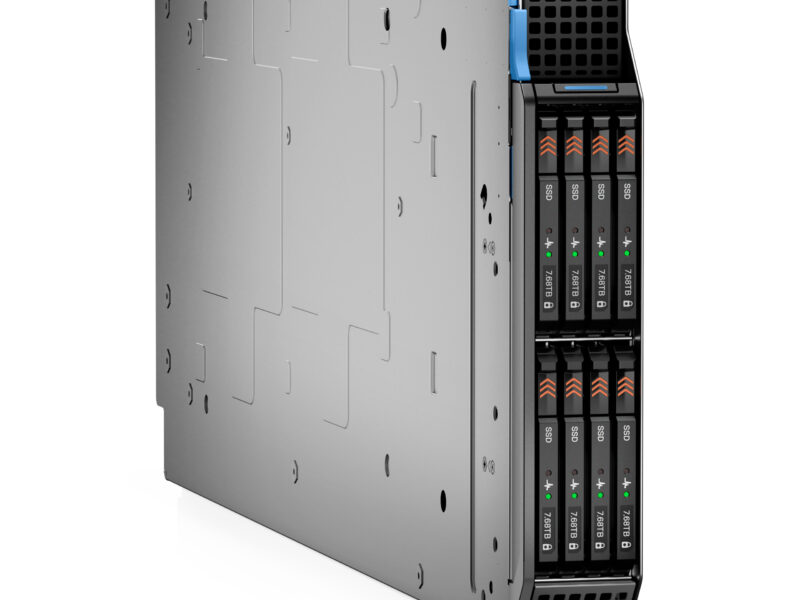

Dell PowerEdge MX760c Blade Server
Future-ready with multiple generations of compute, storage, and networking. Easy to deploy, manage, and service; leverage data for faster outcomes.
Processor
- Up to two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor
Operating System
- Canonical Ubuntu Server LTS
- Microsoft Windows Server with Hyper-V
- RedHat Enterprise Linux
- SUSE Linux Enterprise Server
- VMware vSAN/ESXi
Chipset
- Intel C741 chipset with optional Intel QuickAssist Technology
Memory
- DIMM Speed
- Up to 5600 MT/s
- Memory Type
- RDIMM
- Memory Module Slots
- 32 DDR5 DIMM slots
- Maximum RAM
- RDIMM 8 TB max
Storage

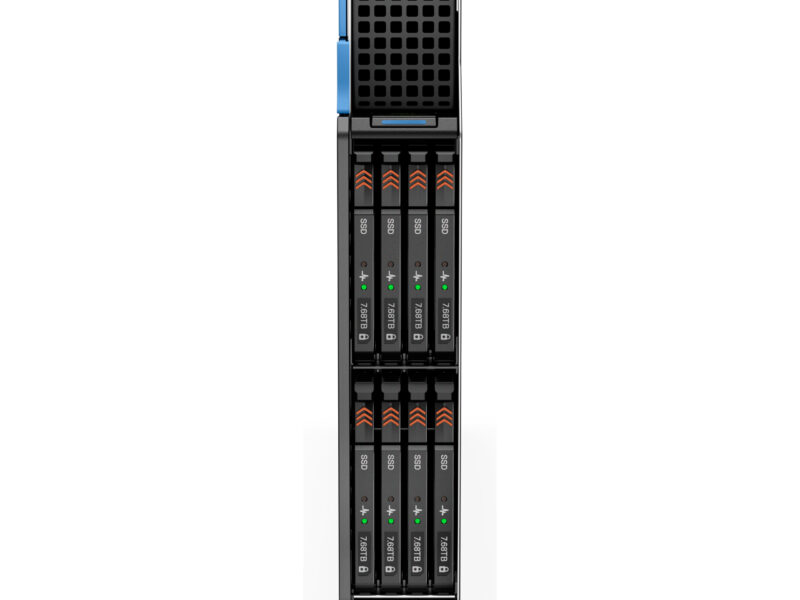

- Front Bays
- Up to 4 x 2.5-inch NVMe/SAS/SATA (HDD/SSD)
- Up to 6 x 2.5-inch SAS /SATA (HDD/SSD)
- Up to 6 x 2.5-inch NVMe/SAS/SATA (HDD/SSD)
Storage Controllers
- Internal Controllers
- PERC H755 MX
- PERC H965i MX
- HBA350i MX
- Software RAID
- S160
- Internal Boot
- Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs 480 GB or 960 GB
- USB
Security
- Cryptographically signed firmware
- Data at Rest Encryption (SEDs with local or external key mgmt)
- Secure Boot
- Secured Component Verification (Hardware integrity check)
- Secure Erase
- Silicon Root of Trust
- System Lockdown (requires iDRAC9 Enterprise or Datacenter)
- TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
- Embedded / At-the-Server
- iDRAC9
- iDRAC Direct
- iDRAC RESTful API with Redfish
- iDRAC Service Module
Consoles
- OpenManage Enterprise
- OpenManage Power Manager plugin
- OpenManage Service plugin
- OpenManage Update Manager plugin
- CloudIQ for PowerEdge plug in
- OpenManage Enterprise Integration for VMware vCenter
- OpenManage Integration for Microsoft System Center
- OpenManage Integration with Windows Admin Center
Mobility
- OpenManage Mobile
Tools
- iDRAC RESTful API with Redfish
- IPMI
- RACADM CLI
- Dell System Update
- Enterprise Catalogs
- Dell Repository Manager
OpenManage Integrations
- BMC Truesight
- Microsoft System Center
- OpenManage Integration with ServiceNow
- RedHat Ansible Modules
- Terraform Providers
- VMware vCenter and vRealize Operations Manager
Power Supplies
- MX7000 chassis: Up to six 3000 W AC Platinum PSU and grid redundancy support
Fans
- MX7000 chassis: 5 rear and 4 front-accessible hot-swap fans with full redundancy
Ports
- Front Ports
- 1 x iDRAC Direct (Micro-AB USB) port
- 1 x USB 3.0
- Internal Ports
- 1 x USB 3.0 (optional)
- Network Options
- MX7000 chassis Fabric options: up to 2 pairs redundant general-purpose switch or pass-through modular bays (Fabrics A and B); redundant pair of storage specific switch bays (Fabric C)
- Up to 25 Gb CNA/NIC per port for Mezz A/B, 32 Gb Fibre Channel, 12 Gbps SAS for Mezz C
Slots
- PCIe
- One x16 PCIe Gen4 slot for PERC – connected to processor 1
- One x16 PCIe Gen4 slot for Mezz A – connected to processor 1
- One x16 PCIe Gen5 slot for Mezz B – connected to processor 2
- One x16 PCIe Gen4 slot for Mini Mezz – connected to processor 1
- Two x8 PCIe Gen5 (SL1, SL2) connectors for NVMe drive – connected to processor 1
- Two x8 PCIe Gen5 (SL4, SL5) connectors for NVMe drive – connected to processor 2
- One x4 PCIe Gen4 for BOSS-N1 HWRAID card
Chassis
- MX7000
Form Factor
- Up to 8 independent hot-swappable, 1U single-width compute sled in a MX7000 chassis
Dimensions & Weight
- Height
- 51.0 mm (2 inches)
- Width
- 257.0 mm (10 inches)
- Depth
- 622.35 mm (25.5 inches) for 4 x 2.5-inch or 6 x 2.5-inch configuration
- Weight
- 8.27 kg (18.23 lbs) for 4 x 2.5-inch configuration
- 8.38 kg (18.47 lbs) for 6 x 2.5-inch configuration
