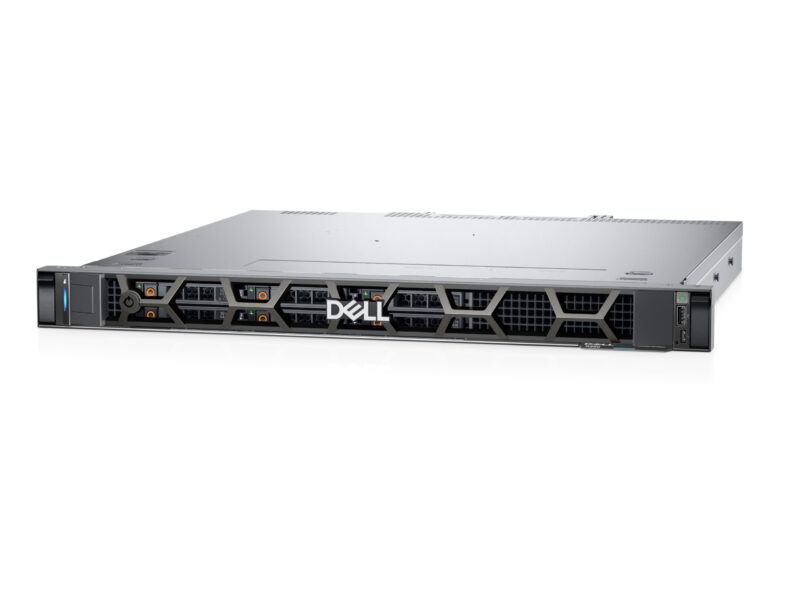

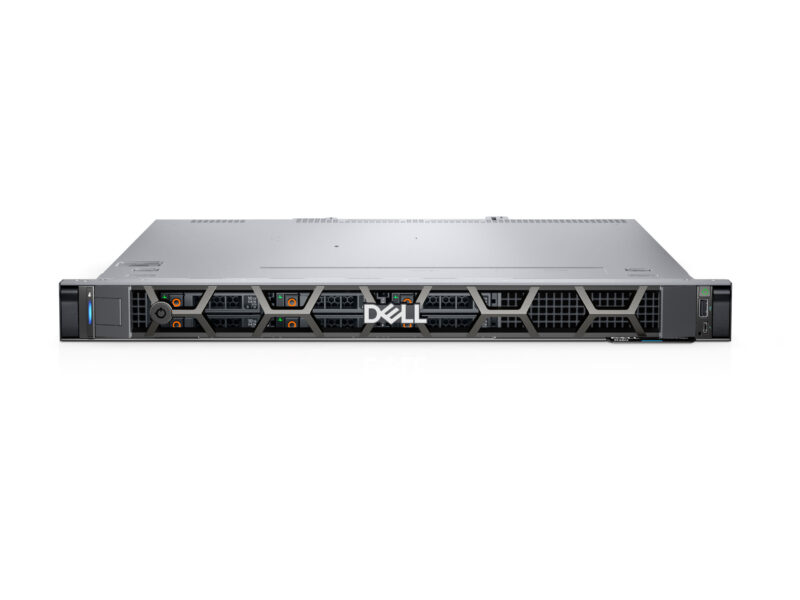

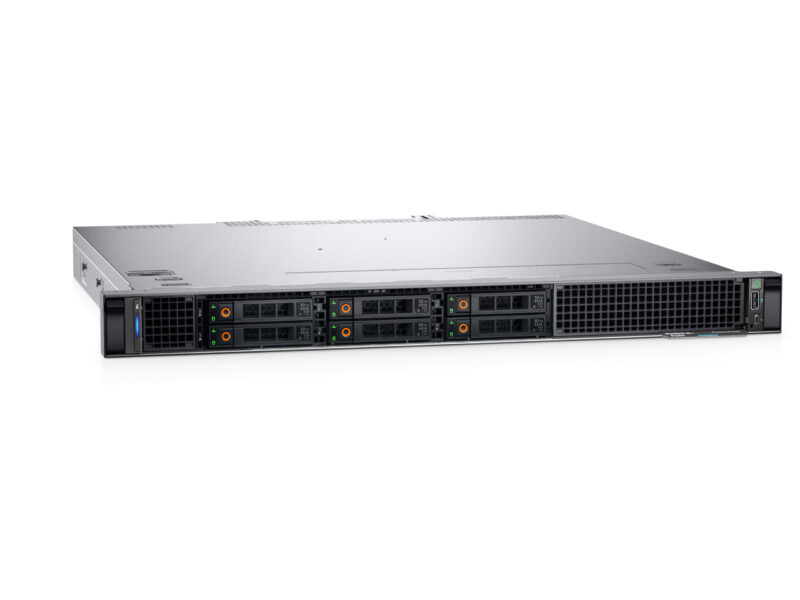

Dell PowerEdge R260 Rack Server
The 1U, single-socket Dell PowerEdge R260 is a short-depth form factor for customers desiring flexibility, affordability and processing power.
Processor
- One Intel Xeon E-2400 series processor with up to 8 cores
- One Intel Pentium G7400/G7400T processor with 2 cores
Operating System
- Canonical Ubuntu Server LTS
- Microsoft Windows Server with Hyper-V
- RedHat Enterprise Linux
- SUSE Linux Enterprise Server
- VMware ESXi
Chipset
- Intel C262 Chipset
Accelerators
- NA
Memory
- DIMM Speed
- Up to 4400 MT/s
- Memory Type
- ECC UDIMM
- Memory Module Slots
- 4 DDR5 DIMM slots
- Maximum RAM
- ECC UDIMM 128 GB
Storage
- Front Bays
- Up to 2 x 3.5-inch cable SAS/SATA HDD/SSD, max 32TB
- Up to 6 x 2.5-inch hot-plug SAS/SATA HDD/SSD, max 46.08TB
- Mid Bay
- NA
- Rear Bay
- NA
Storage Controllers
- Internal Controllers
- HBA355i
- PERC H355
- PERC H755
- External Controllers
- HBA355e
- Software RAID
- S160
- Internal Boot
- Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs
- USB
Security
- Cryptographically signed firmware
- Secure Boot
- Secure Erase
- Secured-core server
- Silicon Root of Trust
- System Lockdown (requires iDRAC9 Enterprise or Datacenter)
- TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
- Secured Component Verification (Hardware integrity check)
- Data at Rest Encryption (SEDs with local or external key mgmt)
Management
- Embedded / At-the-Server
- iDRAC9
- iDRAC Direct
- iDRAC RESTful API with Redfish
- iDRAC Service Module
Consoles
- OpenManage Enterprise
- OpenManage Power Manager plugin
- OpenManage Service plugin
- OpenManage Update Manager plugin
- CloudIQ for PowerEdge plug in
- OpenManage Enterprise Integration for VMware vCenter
- OpenManage Integration for Microsoft System Center
- OpenManage Integration with Windows Admin Center
Mobility
- OpenManage Mobile
Tools
- iDRAC RESTful API with Redfish
- IPMI
- RACADM CLI
- Dell System Update
- Enterprise Catalogs
- Dell Repository Manager
OpenManage Integrations
- BMC Truesight
- Microsoft System Center
- OpenManage Integration with ServiceNow
- RedHat Ansible Modules
- Terraform Providers
- VMware vCenter and vRealize Operations Manager
Power Supplies
- 450 W Platinum 100-240 VAC, non redundant
- 700 W Titanium 200-240 VAC or 240 VDC, non redundant
Fans
- Up to five Standard (STD) fans and one optional High Performance (HPR) fan
Ports
- Network Options
- 2 x 1GbE LOM
- Front Ports
- 1 x iDRAC Direct (Micro-AB USB) port
- 1 x USB 2.0

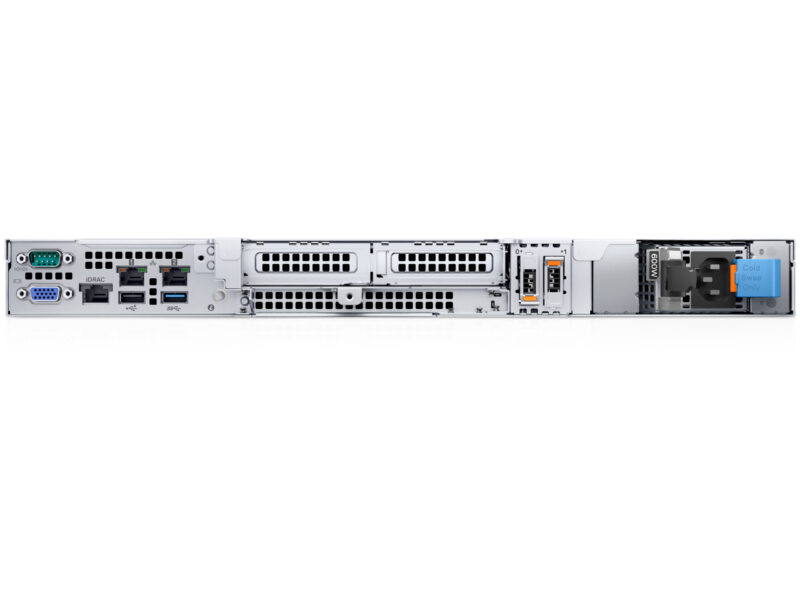

- Rear Ports
- 1 x Dedicated iDRAC Ethernet port
- 1 x USB 2.0
- 1 x USB 3.2 Gen1
- 1 x VGA
- 1 x Serial
- Internal Ports
- 1 x USB 3.2 Gen1
Slots
- PCIe
- Slot 1: 1 x8 slot with x8 bandwidth, Half Length, Low Profile
- Slot 2: 1 x16 slot with x8 bandwidth, Half Length, Low Profile
Bezel
- Security Bezel or optional Filter Bezel
Form Factor
- 1U rack server
Dimensions & Weight
- Height
- 42.8 mm (1.68 inches)
- Width
- 482.0 mm (18.97 inches)
- Depth
- 461.14 mm (18.15 inches) without bezel
- 496.8 mm (19.55 inches) with bezel
- 426.6 mm (16.80 inches) with cable PSU and without bezel
- Weight
- 9.61 kg (21.18 lbs)
Rack Support
- Stab-in sliding rails for racks
