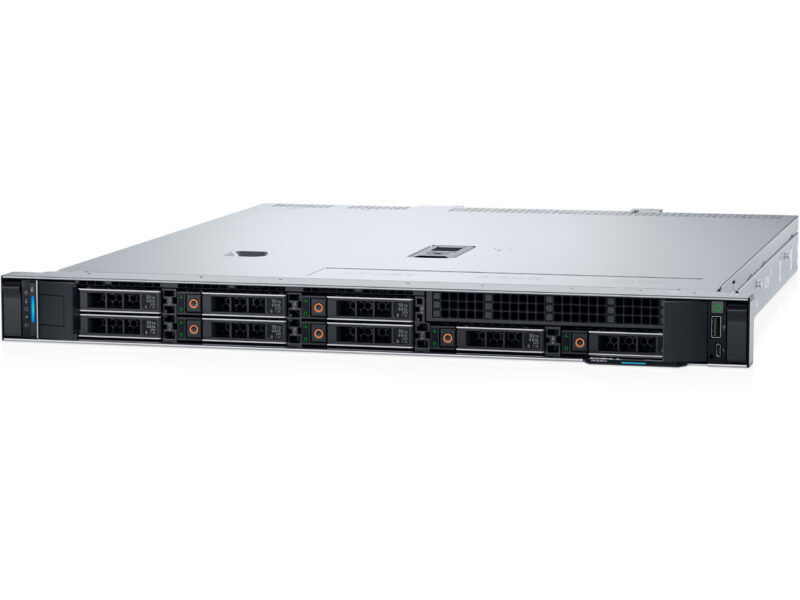

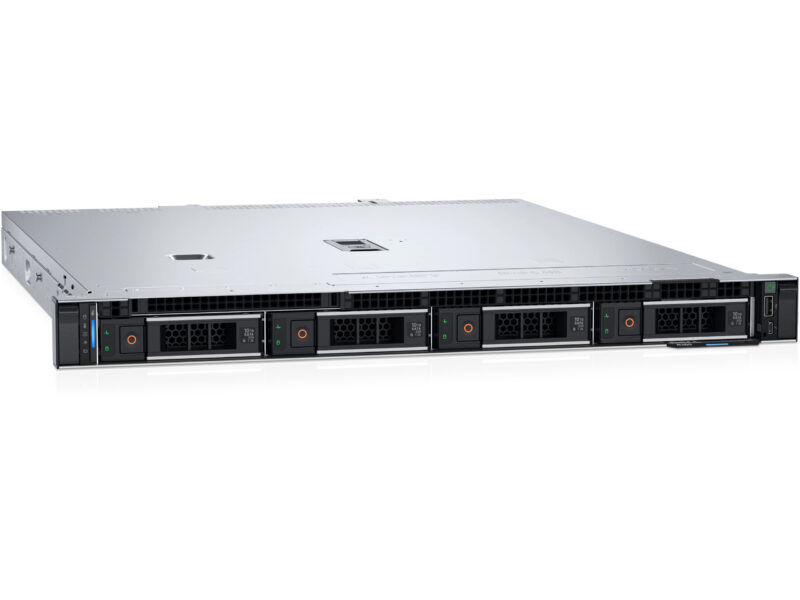

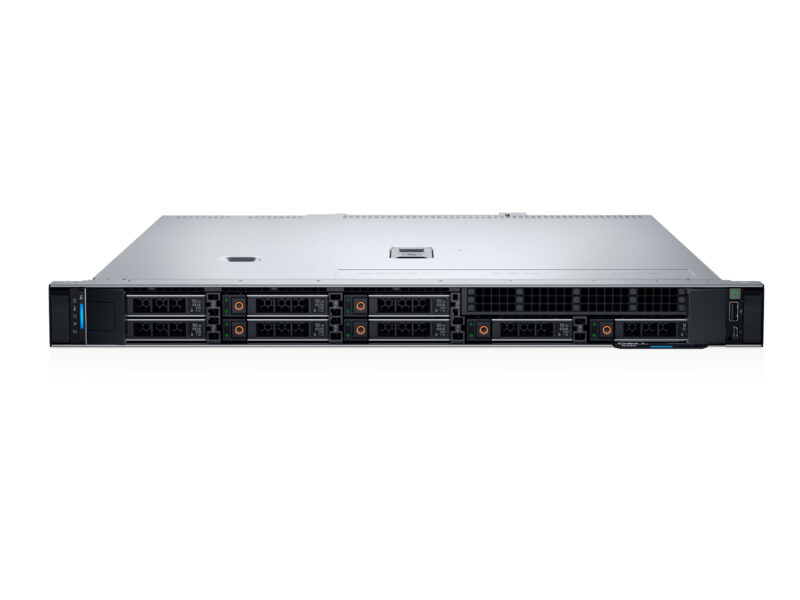

Dell PowerEdge R360 Rack Server

Processor

• One Intel® Xeon® E-2400 series processor with up to 8 cores or One Intel® Pentium® G7400/G7400T processor with 2 cores

Operating System

• Canonical® Ubuntu® Server LTS
• Microsoft® Windows Server® with Hyper-V
• RedHat® Enterprise Linux
• SUSE® Linux Enterprise Server
• VMware® ESXi®

Chipset

• Intel® C262 Chipset

Accelerators

• Up to 1 x 60 W SW GPU

Memory

• DIMM Speed
  • Up to 4400 MT/s
• Memory Type
  • ECC UDIMM
• Memory Module Slots
  • 4 DDR5 DIMM slots
• Maximum RAM
  • ECC UDIMM 128 GB

Storage

• Front Bay
  • Up to 4 x 3.5-inch SAS/SATA max 64 TB
  • Up to 8 x 2.5-inch SAS/SATA max 61.44 TB
• Mid Bay
  • NA
• Rear Bay
  • NA

Storage Controllers

• Internal Controllers
  • HBA355i
  • PERC H355
  • PERC H755
  • HBA355i front
  • H355 front
  • H755 front
• External Controllers
  • HBA355e
• Software RAID
  • S160
• Internal Boot
  • Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs
  • USB

Security

• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secure Erase
• Secured-core server
• Secured Component Verification (Hardware integrity check)
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Management

• Embedded / At-the-Server:
  • iDRAC9
  • iDRAC Direct
  • iDRAC RESTful API with Redfish
  • iDRAC Service Module
• Consoles:
  • OpenManage Enterprise
  • OpenManage Power Manager plugin
  • OpenManage Service plugin
  • OpenManage Update Manager plugin
  • CloudIQ for PowerEdge plug in
  • OpenManage Enterprise Integration for VMware® vCenter™
  • OpenManage Integration for Microsoft® System Center
  • OpenManage Integration with Windows Admin Center
• Mobility:
  • OpenManage Mobile
• Tools:
  • Dell Repository Manager
  • Dell System Update
  • Enterprise Catalogs
  • iDRAC RESTful API with Redfish
  • IPMI
  • RACADM CLI
• OpenManage Integrations:
  • BMC Truesight
  • Microsoft® System Center
  • OpenManage Integration with ServiceNow
  • RedHat® Ansible® Modules
  • Terraform Providers
  • VMware® vCenter™ and vRealize Operations Manager

Power Supplies

• 600 W Platinum 100-240 VAC or 240 VDC, hot swap redundant
• 700 W Titanium 200-240 VAC or 240 VDC, hot swap redundant

Ports

• Network Options
  • 2 x 1GbE LOM
  • Front Ports
  • 2 x 1GbE LOM
  • 1 x iDRAC Direct (Micro-AB USB) port
  • 1 x USB 2.0
• Rear Ports
  • 1 x Dedicated iDRAC Ethernet port
  • 1 x USB 2.0
  • 1 x USB 3.2 Gen1
  • 1 x VGA
  • 1 x Serial
• Internal Ports
  • 1 x USB 3.2 Gen1

Slots

• PCIe
  • Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile
  • Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile
  • One dedicated PCIe x8 slot on the system board for internal PERC

Chassis

• Fans
  • Up to 4 fans

Bezel

• Security Bezel
• Optional Filter Bezel

Form Factor

• 1U rack server

Dimensions & Weight

• Height
  • 42.8 mm (1.68 inches)
• Width
  • 482.0 mm (18.97 inches)
• Depth
  • 598.9 mm (23.57 inches) with bezel
  • 585.3 mm (23.04 inches) without bezel
• Weight
  • 13.23 kg (29.17 lbs.) maximum weight

Rack Support

• Stab-in sliding rails with optional cable management arm (CMA) for 4-post racks.
