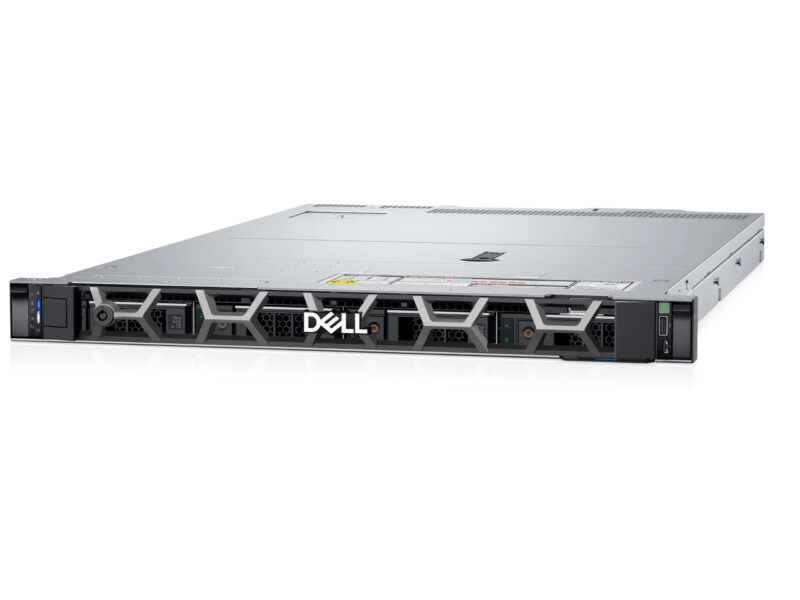

Dell PowerEdge R660xs Rack Server

Processor

• Up to 2 x 5th generation Intel Xeon Scalable processors with up to 28 cores and 4th generation Intel Xeon Scalable processors with up to 32 cores per processor

Operating System

• Microsoft Windows Server with Hyper-V
• RedHat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware vSAN/ESXi
• Canonical Ubuntu Server LTS

Chipset

• Intel C741 Chipset

Memory

• DIMM Speed
  • Up to 5200 MT/s
• Memory Type
  • RDIMM
• Memory Module Slots
  • 16 DDR5 DIMM slots
• Maximum RAM
  • 1.5 TB

Storage

• Front Bays
  • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 96 TB
  • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB

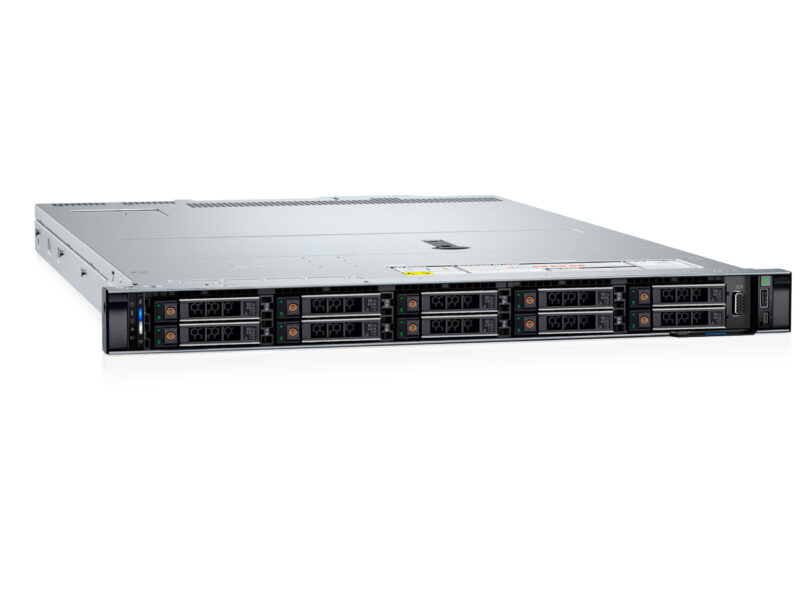

  • Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB
• Mid Bay
  • NA
• Rear Bay
  • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB

Storage Controllers

• Internal Controllers
  • PERC H965i
  • PERC H755
  • PERC H755N
  • PERC H355
  • HBA355i
  • HBA465i
• External Controllers
  • HBA355e
• Software RAID
  • S160
• Internal Boot
  • Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs (cold swap)
  • USB

Security

• Cryptographically signed firmware
• Secure Boot
• Secure Erase
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
• Secured Component Verification (Hardware integrity check)
• Data at Rest Encryption (SEDs with local or external key mgmt)

Management

• Embedded / At-the-Server
• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module
• Quick Sync 2 wireless module

Consoles

• OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin
• CloudIQ for PowerEdge plug in
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center

Mobility

• OpenManage Mobile

Tools

• iDRAC RESTful API with Redfish
• IPMI
• RACADM CLI
• Dell System Update
• Enterprise Catalogs
• Dell Repository Manager

OpenManage Integrations

• BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• RedHat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager

Power Supplies

• 1800 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant
• 1400 W Titanium 100-240 VAC or 240 VDC, hot swap redundant
• 1400 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
• 1100 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant
• 100 W LVDC -48 – (-60) VDC, hot swap redundant
• 800 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
• 700 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant
• 600 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant

Fans

• Standard (STD) fans, High performance SLVR fans or High performance GOLD fans
• Up to 7 hot swappable fans

Ports

• Network Options
  • 2 x 1 GbE LOM card (optional)
  • 1 x OCP card 3.0 (optional)
  • Note: The system allows either LOM card or an OCP card or both to be installed in the system.
• Front Ports
  • 1 x iDRAC Direct (Micro-AB USB) port
  • 1 x USB 2.0
  • 1 x VGA

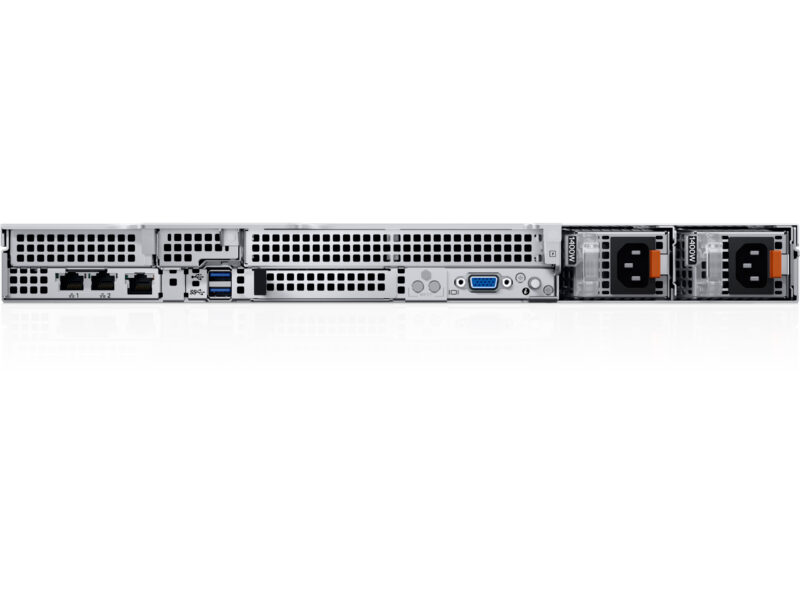

• Rear Ports
  • 1 x Dedicated iDRAC Ethernet port
  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x Serial (optional)
  • 1 x VGA
• Internal Ports
  • 1 x USB 3.0 (optional)

Slots

• PCIe
  • 1 CPU Configuration: Up to 2 PCIe slots (1 x16 Gen4 + 1 x8 Gen5)
  • 2 CPU configuration: Up to 3 PCIe Gen4 slots (1 x16 Gen4 + 2 x8 Gen4) or up to 2 PCIe Gen5 slots (1 x16 Gen5 + 1 x8 Gen5)

Video

• 1 x VGA

Bezel

• Optional LCD bezel or security bezel

Form Factor

• 1U rack server

Dimensions & Weight

• Height
  • 42.8 mm (1.68 inches)
• Width
  • 482.0 mm (18.97 inches)
• Depth
  • 712.95 mm (28.05 inches) without bezel
  • 748.79 mm (29.85 inches) with bezel
• Weight
  • 19.45 Kg (55.33 pound)

Rack Support

• ReadyRails™ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks
• Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks
• ReadyRails static rails for 4-post and 2-post racks
