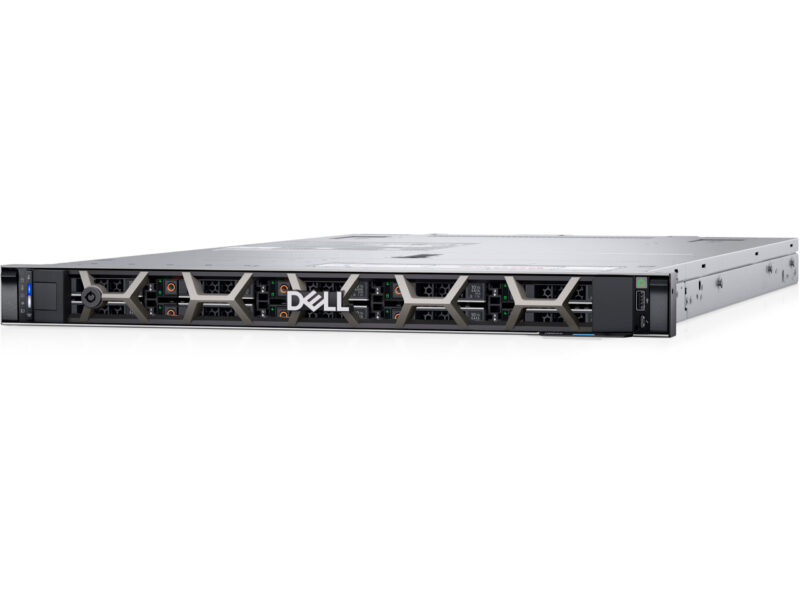

Dell PowerEdge R6625 Rack Server

Processor

• Up to 2 x AMD EPYC 4th Generation 9004 Series with up to 96 cores per processor

Operating System

• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• RedHat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi

Chipset

• AMD Chipset

Accelerators

• Up to 3 x 75 W SW

Memory

• DIMM Speed
  • Up to 4800 MT/s
• Memory Type
  • RDIMM
• Memory Module Slots
  • 24 DDR4 DIMM slot
• Maximum RAM
  • RDIMM 6 TB

Storage

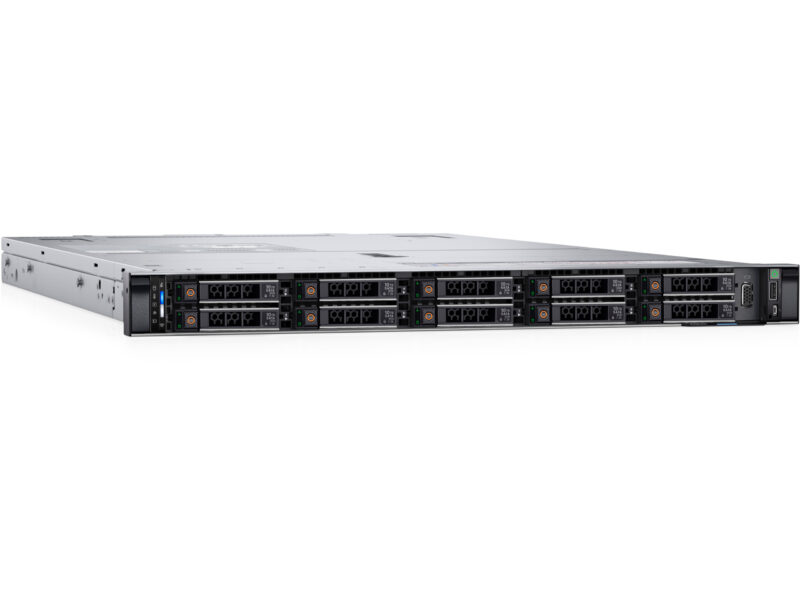

• Front Bays
  • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 80 TB
  • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB
  • Up to 10 x 2.5-inchSAS/SATA/NVMe (HDD/SSD) max 153.6 TB
  • Up to 14 x E3.S NVMe direct drives max 107.52 TB
  • Up to 16 x E3.S NVMe direct drives max 122.88 TB
• Mid Bay
  • NA
• Rear Bay
  • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
  • Up to 2 x E3.S NVMe direct drives max 12.8 TB

Storage Controllers

• Internal Controllers
  • PERC H965i
  • PERC H755
  • PERC H755N
  • PERC H355
• External Controllers
  • PERC H965e
• Internal HBAs
  • HBA355i, HBA465i
• External HBAs
  • HBA355e, HBA465e
• Software RAID
  • S160
• Internal Boot
  • Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs
  • USB

Security

• Cryptographically signed firmware
• Secure Boot
• Secure Erase
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
• Secured Component Verification (Hardware integrity check)
• Data at Rest Encryption (SEDs with local or external key mgmt)
• AMD Secure Memory Encryption (SME)
• AMD Secure Encrypted Virtualization (SEV)

Management

• Embedded / At-the-Server
• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module
• Quick Sync 2 wireless module

Consoles

• OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage SupportAssist plugin
• OpenManage Update Manager plugin
• CloudIQ for PowerEdge plug in
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center

Mobility

• OpenManage Mobile

Tools

• iDRAC RESTful API with Redfish
• IPMI
• RACADM CLI
• Dell System Update
• Enterprise Catalogs
• Dell Repository Manager

OpenManage Integrations

• BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• RedHat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager

Power Supplies

• 1800 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant
• 1400 W Mixed mode 100-240 VAC or 240 HVDC, hot swap redundant
• 1100 W Mixed mode 100-240 VAC or 240 HVDC, hot swap redundant
• 1100 W LVDC -48 – -60 VDC, hot swap redundant
• 800 W Platinum 100-240 VAC or 240 HVDC , hot swap redundant

Fans

• Up to 4 sets (dual fan module) hot plug fans

Ports

• Network Options
  • 2 x 1 GbE LOM card (optional)
  • 1 x OCP 3.0 card (optional)
  • Note: The system allows either LOM card or an OCP card or both to be installed in the system.
• Front Ports
  • 1 x iDRAC Direct (Micro-AB USB) port
  • 1 x USB 2.0
  • 1 x VGA

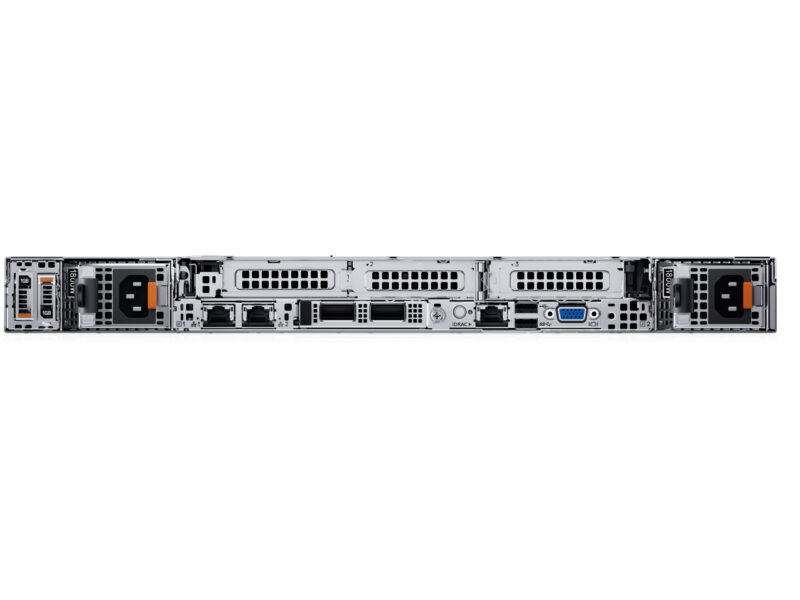

• Rear Ports
  • 1 x Dedicated iDRAC Ethernet port
  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x Serial (optional)
  • 1 x VGA (optional for Direct Liquid Cooling configuration)
• Internal Ports
  • 1 x USB 3.0 (optional)

Slots

• PCIe
  • Slot 1: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length
  • Slot 2: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length
  • Slot 3: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length

Video

• 1 x VGA

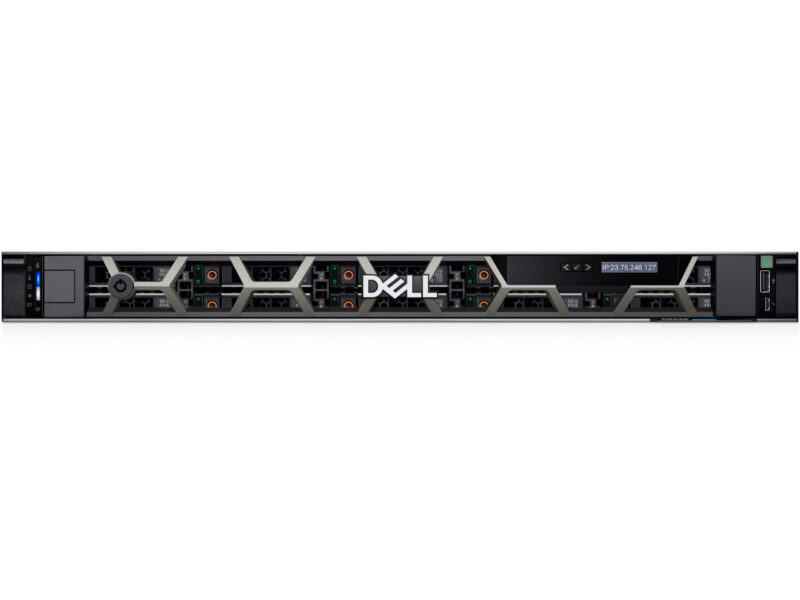

Bezel

• Optional LCD bezel or security bezel

Form Factor

• 1U rack server

Dimensions & Weight

• Height
  • 1.68 inches (42.8 mm)
• Width
  • 18.97 inches (482.0 mm)
• Depth
  • 32.4 inches (822.89 mm) with bezel
  • 31.85 inches (809.05 mm) without bezel
• Weight
  • Max 44.97 lbs. (20.4 kg)

Rack Support

• ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks
• Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks
• ReadyRails static rails for 4-post and 2-post racks
• Note: CMA is not supported in Direct Liquid Cooling configuration
