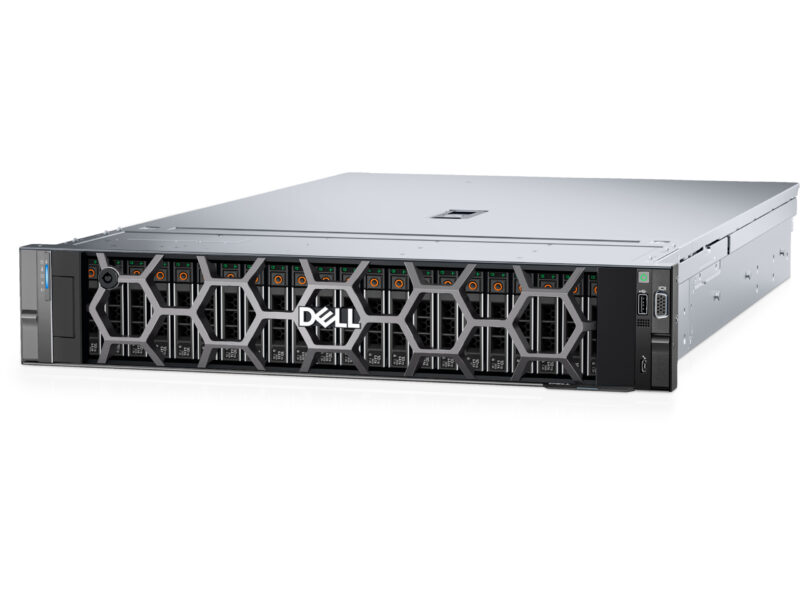

Dell PowerEdge R760 Rack Server

Processor

• Up to 2 x 5th Generation Intel® Xeon Scalable processors with up to 64 cores per processor

Operating System

• Canonical® Ubuntu® Server LTS
• Microsoft® Windows Server® with Hyper-V
• RedHat® Enterprise Linux
• SUSE Linux Enterprise Server
• VMware® ESXi®

Chipset

• Intel® C741 Chipset

Accelerators

• Up to 2 x 350 W DW and 6 x 75 W SW

Memory

• DIMM Speed
  • Up to 5600 MT/s on the 5th Generation Intel® Xeon Scalable processors
• Memory Type
  • RDIMM
• Memory Module Slots
  • 32 DDR5 DIMM slots
• Maximum RAM
  • RDIMM 8 TB

Storage

• Front Bay
  • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
  • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
  • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
  • Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB

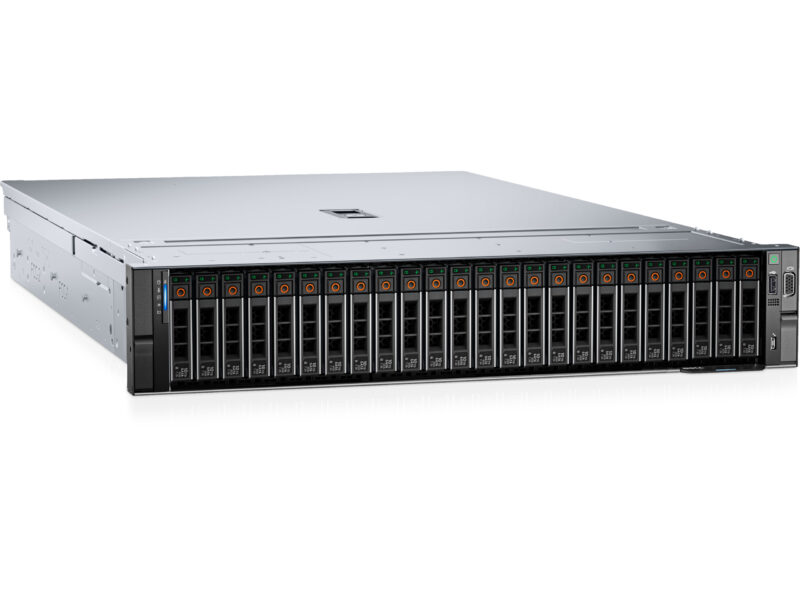

  • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB
• Mid Bay
  • N/A
• Rear Bay
  • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
  • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
  • Up to 4 x EDSFF E3.S Gen5 NVMe (SSD) max 30.72 TB

Storage Controllers

• Internal Controllers
  • PERC H965i
  • PERC H755
  • PERC H755N
  • PERC H355
  • HBA355i
• External Controllers
  • PERC H965e
  • HBA355e
• Software RAID
  • S160
• Internal Boot
  • Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs
    USB

Security

• Cryptographically signed firmware
• Secure Boot
• Secure Erase
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
• Secured Component Verification (Hardware integrity check)
• Data at Rest Encryption (SEDs with local or external key mgmt)

Management

• Embedded / At-the-Server
• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module
• Quick Sync 2 wireless module

Consoles

• OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin
• CloudIQ for PowerEdge plug in
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center

Mobility

• OpenManage Mobile

Tools

• iDRAC RESTful API with Redfish
• IPMI
• RACADM CLI
• Dell System Update
• Enterprise Catalogs
• Dell Repository Manager

OpenManage Integrations

• BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• RedHat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager

Power Supplies

• 3200 W Titanium 277 VAC or 336 HVDC, hot swap redundant
• 2800 W Titanium 200-240 HLAC or 240 HVDC, hot swap redundant
• 2400 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
• 1800 W Titanium 200-240 HLAC or 240 HVDC, hot swap redundant
• 1400 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
• 1400 W Titanium 277 VAC or 336 HVDC, hot swap redundant
• 1100 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant
• 1100 W (48-60) VDC, hot swap redundant
• 800 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
• 700 W Titanium 200-240 HLAC or 240 HVDC, hot swap redundant

Fans

• Up to 6 fans

Ports

• Network Options
  • 2 x 1GbE LOM card (optional)
  • 1 x OCP card 3.0 (optional)
  • Note: The system allows either LOM card or an OCP card or both to be installed in the system.

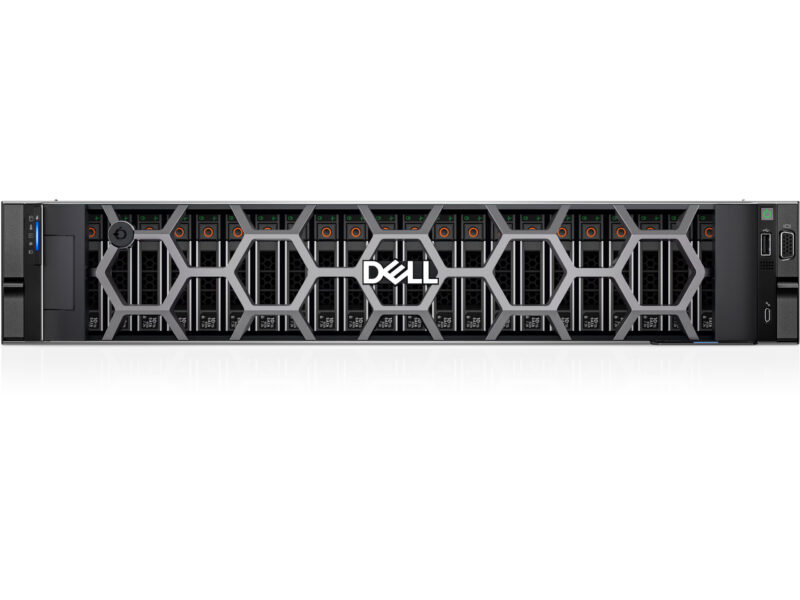

• Front Ports
  • 1 x iDRAC Direct (Micro-AB USB) port
  • 1 x USB 2.0
  • 1 x VGA

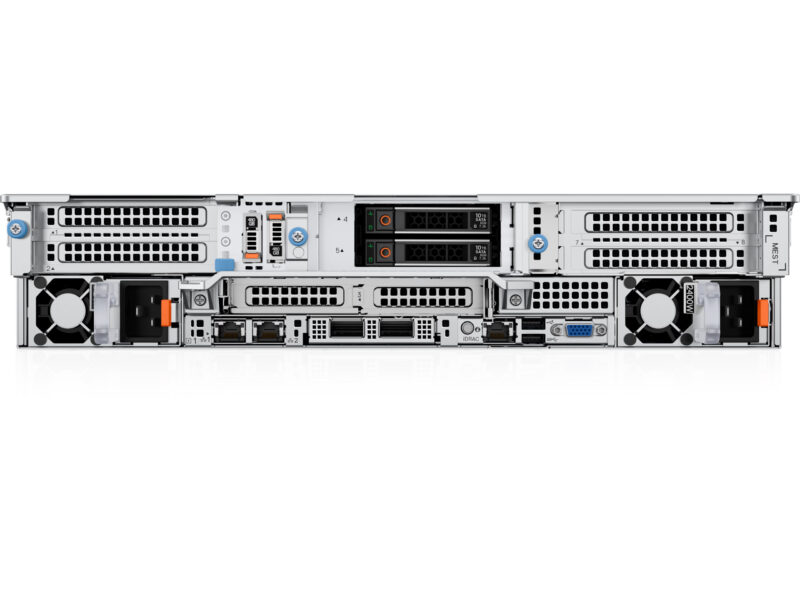

• Rear Ports
  • 1 x Dedicated iDRAC Ethernet port
  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x Serial (optional)
  • 1 x VGA (optional for Direct Liquid Cooling configuration)
• Internal Ports
  • 1 x USB 3.0 (optional)

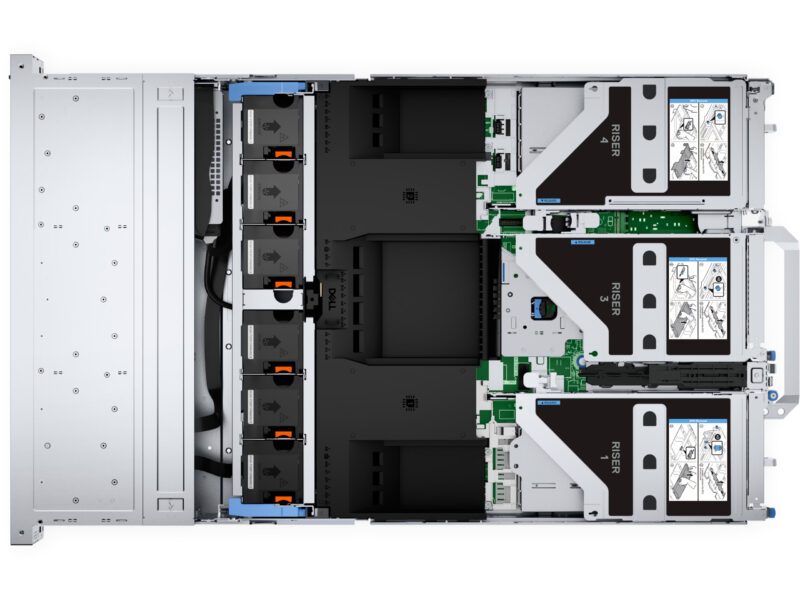

Slots

• PCIe
  • Slot 1: 1 x8 Gen5 or 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length
  • Slot 2: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length
  • Slot 3: 1 x16 Gen4 Low profile, Half length
  • Slot 4: 1 x8 Gen4 Full height, Half length
  • Slot 5: 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length
  • Slot 6: 1 x8/1 x16 Gen4 Low Profile, Half length
  • Slot 7: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length
  • Slot 7 SNAPI: 1 x16 Gen5 Full height, Half length
  • Slot 8: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length

Video

• 1 x VGA

Bezel

• Optional LCD bezel or security bezel

Form Factor

• 2U rack server

Dimensions & Weight

• Height: 86.8 mm (3.41 inches)
• Width: 482 mm (18.97 inches)
• Depth: 772.13 mm (30.39 inches) with bezel
• Depth:758.29 mm (29.85 inches) without bezel
• Weight: Max 36.1 kg (79.58 lbs.)

Rack Support

• ReadyRails™ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks
• Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks
• Note: CMA is not supported in Direct Liquid Cooling configuration
• ReadyRails static rails for 4-post and 2-post racks
