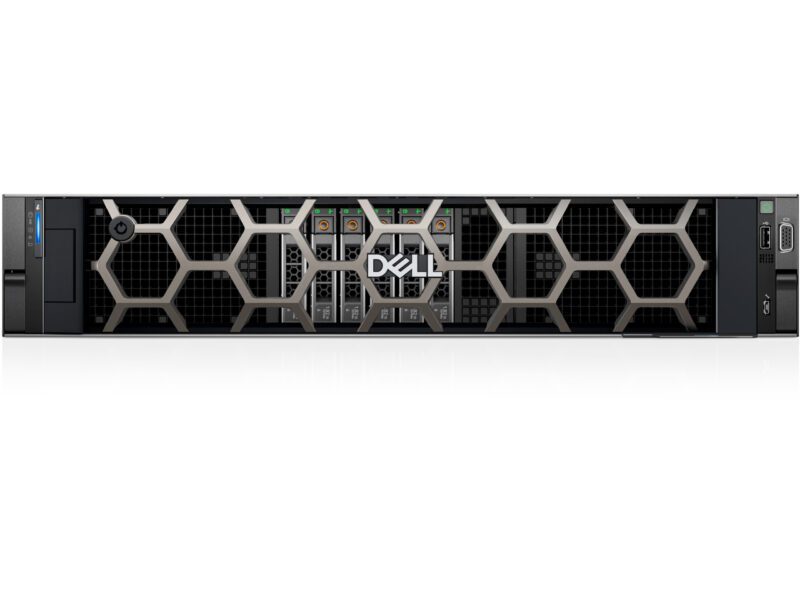

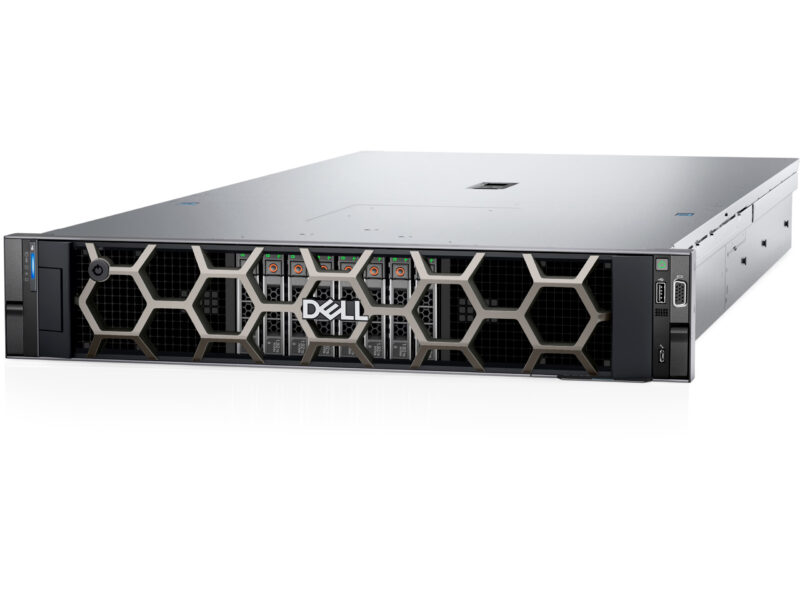

Dell PowerEdge R760xa Rack Server
Scale as you grow with this high-performance air-cooled server engineered for a wide range of applications like AI-ML/DL training and inferencing, advanced analytics and VDI workloads.
Processor
- Up to 2 x 5th Generation Intel Xeon Scalable processor with up to 64 cores per processor and with optional Intel QuickAssist Technology
Operating System
- Canonical Ubuntu Server LTS
- Microsoft Windows Server with Hyper-V
- RedHat Enterprise Linux
- SUSE Linux Enterprise Server
- VMware ESXi
Chipset
- Intel C741 Chipset
Accelerators
- Up to 3 x 75 W SW
Memory
- DIMM Speed
- Up to 5600 MT/s on the 5th Generation Intel Xeon Scalable processor
- Memory Type
- RDIMM
- Memory Module Slots
- 32 DDR5 DIMM slots
- Maximum RAM
- RDIMM 8 TB

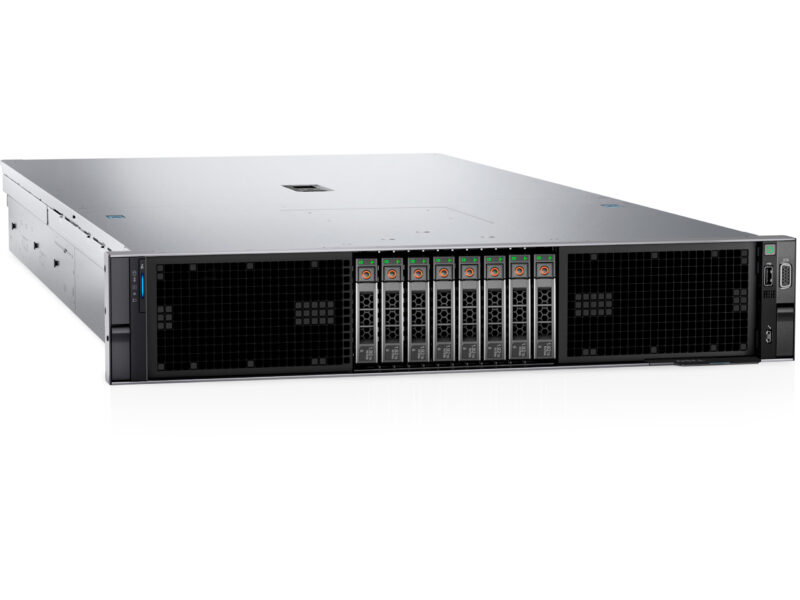

Storage
- Front Bays
- Up to 6 x 2.5-inch NVMe, max 92.16 TB
- Up to 8 x 2.5-inch SAS/SATA/NVMe, max 122.88 TB
Storage Controllers
- Software RAID
- S160
- Internal Boot
- Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs
- USB
Security
- Cryptographically signed firmware
- Secure Boot
- Secure Erase
- Silicon Root of Trust
- System Lockdown (requires iDRAC9 Enterprise or Datacenter)
- TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
- Secured Component Verification (Hardware integrity check)
- Data at Rest Encryption (SEDs with local or external key mgmt)
Management
- Embedded / At-the-Server
- iDRAC9
- iDRAC Direct
- iDRAC RESTful API with Redfish
- iDRAC Service Module
- Quick Sync 2 wireless module
Consoles
- OpenManage Enterprise
- OpenManage Power Manager plugin
- OpenManage Service plugin
- OpenManage Update Manager plugin
- CloudIQ for PowerEdge plug in
- OpenManage Enterprise Integration for VMware vCenter
- OpenManage Integration for Microsoft System Center
- OpenManage Integration with Windows Admin Center
Mobility
- OpenManage Mobile
Tools
- iDRAC RESTful API with Redfish
- IPMI
- RACADM CLI
- Dell System Update
- Enterprise Catalogs
- Dell Repository Manager
OpenManage Integrations
- BMC Truesight
- Microsoft System Center
- OpenManage Integration with ServiceNow
- RedHat Ansible Modules
- Terraform Providers
- VMware vCenter and vRealize Operations Manager
Power Supplies
- 2800 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant
- 2400 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
Ports
- Network Options
- 2 x 1 GbE LOM card (optional)
- 1 x OCP card 3.0 (optional)
- Note: The system allows either LOM card or an OCP card or both to be installed in the system.
- Front Ports
- 1 x iDRAC Direct (Micro-AB USB) port
- 1 x USB 2.0
- 1 x VGA

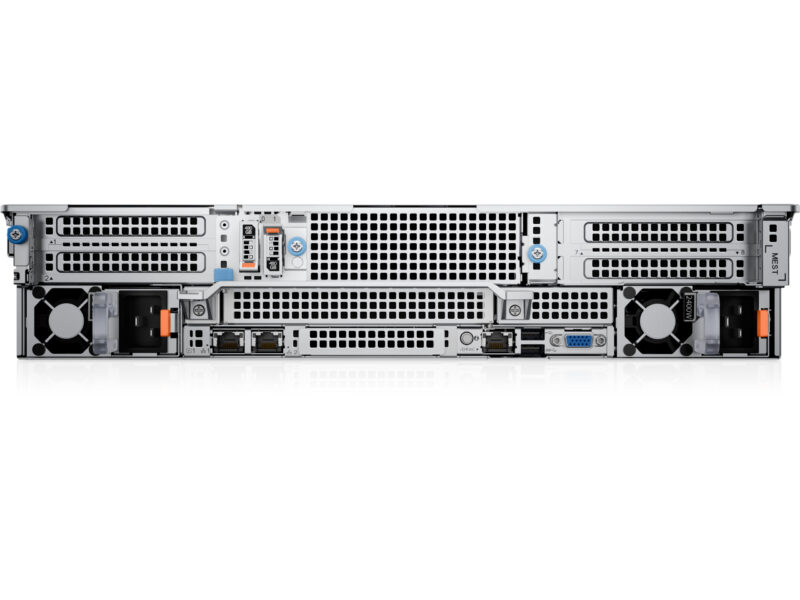

- Rear Ports
- 1 x Dedicated iDRAC Ethernet port
- 1 x USB 2.0
- 1 x USB 3.0
- 1 x Serial (optional)
- 1 x VGA (optional for Direct Liquid Cooling configuration)
- Internal Ports
- 1 x USB 3.0 (optional)
Slots
- 1 x USB 3.0 (optional)
- 12 PCIe slots:
- Slot 1: 1 x16 Gen5 Full height, Half length
- Slot 2: 1 x16 Gen5 Full height, Half length
- Slot 7: 1 x16 Gen5 Full height, Half length
- Slot 8: 1 x16 Gen5 Full height, Half length
- Slot 31: 1 x8 Gen5 Full height, Full length
- Slot 32: 1 x8 Gen5 Full height, Full length
- Slot 33: 1 x8 Gen5 Full height, Full length
- Slot 34: 1 x8 Gen5 Full height, Full length
- Slot 35: 1 x8 Gen5 Full height, Full length
- Slot 36: 1 x8 Gen5 Full height, Full length
- Slot 37: 1 x8 Gen5 Full height, Full length
- Slot 38: 1 x8 Gen5 Full height, Full length
Bezel
- Optional LCD bezel or security bezel
Form Factor
- 2U rack server
Dimensions & Weight
- Height
- 3.41 inches (86.8 mm)
- Width
- 18.97 inches (482 mm)
- Depth
- 37.27 inches (946.73 mm) with bezel
- 36.73 inches (932.89 mm) without bezel
- Weight
- Max 60.63 lbs. (27.5 Kg)
Rack Support
- Combo (Drop-in/Slide-in) rails with SRB for 4-post racks.
- Note: CMA is not supported in Direct Liquid Cooling configuration
