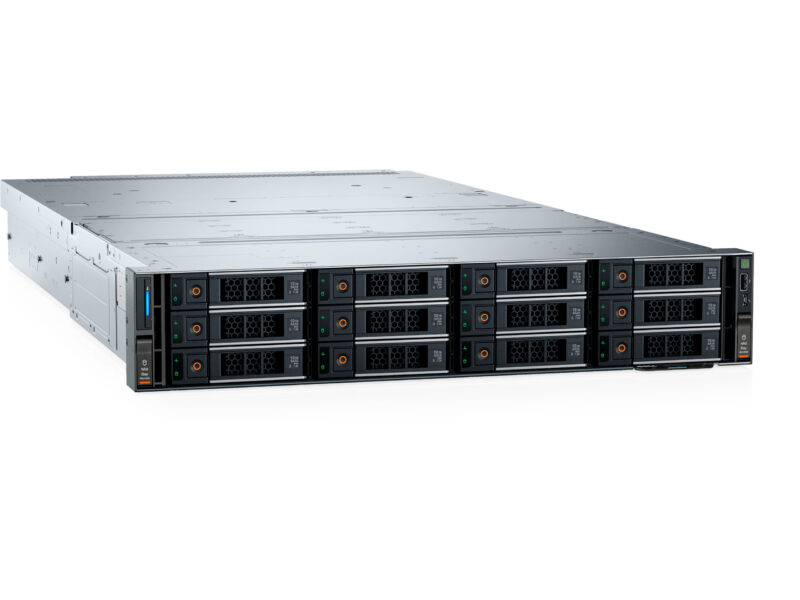

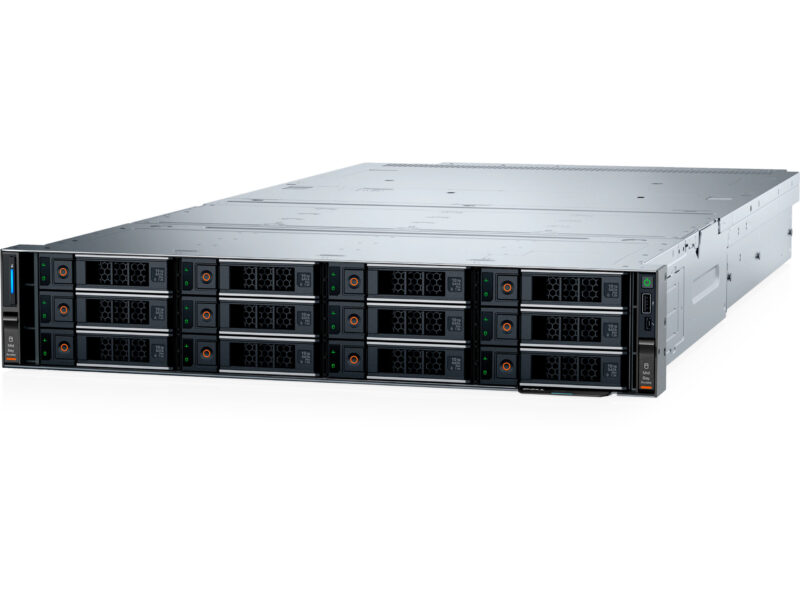

Dell PowerEdge R760xd2 Rack Server

Processor

• Up to 2 x 4th Generation Intel Xeon Scalable processors, or
• Up to 2 x 5th Generation Intel Xeon Scalable processors

Operating System

• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• RedHat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi

Chipset

• Intel C741 Chipset with optional Intel QuickAssist Technology

Accelerators

• Up to 2 x 75 W SW, 1 x 75 W SW + 1 x 150 W SW or 1 x180 W DW

Memory

• DIMM Speed
  • Up to 5600 MT/s
  • Note: The maximum memory speed the system will support is 4800 MT/s due to the limitation of the processor.
  • Note: 5600 MT/s RDIMMs are applicable for 5th Gen Intel Xeon Scalable Processors.
• Memory Type
  • RDIMM
• Memory Module Slots
  • 16 DDR5 DIMM slots
• Maximum RAM
  • RDIMM 1.5 TB

Storage

• Front Bays
  • Up to 12 x 3.5-inch SAS/SATA max 264 TB

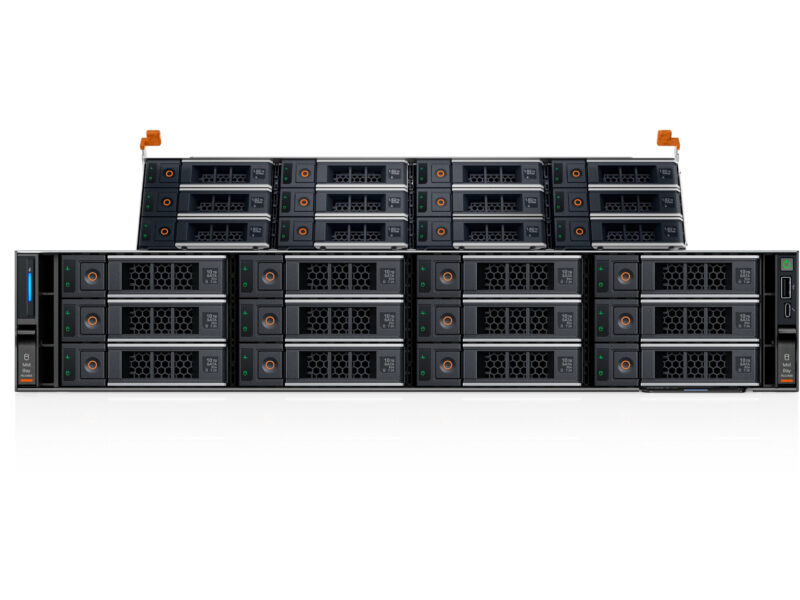

• Mid Bay
  • Up to 12 x 3.5-inch SAS/SATA max 264 TB
• Rear Bay
  • Up to 4 x 3.5-inch SAS/SATA max 88 TB
  • Up to 4 x 2.5-inch NVMe with 3.5 inch carrier max 30.72 TB
  • Up to 2 x 2.5-inch NVMe max 15.36 TB
  • 4 x E3.S NVMe SSD max 61.44 TB

Storage Controllers

• Internal Controllers
  • PERC H755
  • PERC H965i
  • PERC H355
  • HBA355i
  • HBA465i
• External Controllers
  • HBA355e
  • HBA465e
  • PERC H965e
• Internal Boot
  • Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs
  • USB

Management

• Embedded / At-the-Server
• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module
• Quick Sync 2 wireless module

Consoles

• OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin
• CloudIQ for PowerEdge plug in
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center

Mobility

• OpenManage Mobile

Tools

• iDRAC RESTful API with Redfish
• IPMI
• RACADM CLI
• Dell System Update
• Enterprise Catalogs
• Dell Repository Manager

OpenManage Integrations

• BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• RedHat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager

Ports

• Network Options
  • 2 x 1GbE LOM
  • 1 x OCP card 3.0 (optional)
  • Note: The system allows either LOM card or an OCP card or both to be installed in the system.
• Front Ports
  • 1 x iDRAC Direct (Micro-AB USB) port
  • 1 x USB 2.0

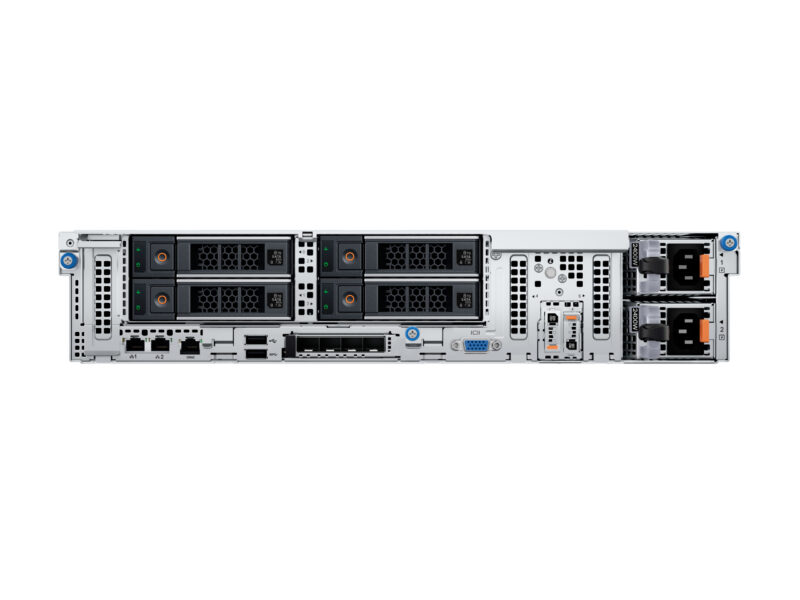

• Rear Ports
  • 1 x Dedicated iDRAC Ethernet port
  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x VGA
• Internal Ports
  • 1 x USB 3.0 (optional)

Slots

• PCIe
  • Slot 1: 1 x16 Gen 4 Low profile, Half length
  • Slot 2: 1 x8 (x16 connector) Gen 4 Low profile, Half length or 1 x16, Gen 4 Full height, Full length or 1 x16 Gen 4 Full height, Half length
  • Slot 3: 1 x16 Gen 4 Low profile, Half length or 1 x16 Gen 4 Full height, Full length or 1 x16 Gen 4 Full height, Half length
  • Slot 4: 1 x16 Gen 4 Low profile, Half length
  • Slot 5: 1 x16 Gen 4 Low profile, Half length
  • NOTE: Slot 5 is dedicated for internal PERC card.

Form Factor

• 2U rack server

Dimensions & Weight

• Height
  • 3.41 in. (86.8 mm)
• Width
  • 18.96 in. (481.6 mm)
• Depth
  • With bezel – NA
  • 32.95 in. (837 mm) without bezel
• Weight
  • 102.07 lb (46.3 kg) maximum weight

Rack Support

• Stab-in sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks
