Dell PowerEdge T160 Tower Server
The single-socket Dell PowerEdge T160 is a short-depth form factor for customers desiring flexibility, affordability and processing power.
Processor
- One Intel Xeon E-2400 series processor with up to eight cores
- One Intel Pentium G7400/G7400T processor with up to two cores
Operating System
- Canonical Ubuntu Server LTS
- Microsoft Windows Server with Hyper-V
- RedHat Enterprise Linux
- SUSE Linux Enterprise Server
- VMware ESXi
Chipset
- Intel C262 Chipset
Accelerators
- NA
Memory
- DIMM Speed
- Up to 4400 MT/s
- Memory Type
- ECC UDIMM
- Memory Module Slots
- 4 DDR5 DIMM slots
- Maximum RAM
- ECC UDIMM 128 GB
Storage
- Front Bays
- Up to 3 x 3.5-inch cable SAS/SATA HDD/SSD, max 48 TB
- Up to 3 x 3.5-inch + 2 x 2.5-inch cable SAS/SATA HDD/SSD, max 63.36 TB
- Mid Bay
- NA
- Rear Bay
- NA
Storage Controllers
- Internal Controllers
- HBA355i Adapter
- PERC H355 Adapter
- PERC H755 Adapter
- External Controllers
- HBA355e Adapter
- Software RAID
- S160
- Internal Boot
- Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs
- USB
Security
- Cryptographically signed firmware
- Secure Boot
- Secure Erase
- Secured-core server
- Silicon Root of Trust
- System Lockdown (requires iDRAC9 Enterprise or Datacenter)
- TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
- Secured Component Verification (Hardware integrity check)
- Data at Rest Encryption (SEDs with local or external key mgmt)
Management
- Embedded / At-the-Server
- iDRAC9
- iDRAC Direct
- iDRAC RESTful API with Redfish
- iDRAC Service Module
Consoles
- OpenManage Enterprise
- OpenManage Power Manager plugin
- OpenManage Service plugin
- OpenManage Update Manager plugin
- CloudIQ for PowerEdge plug in
- OpenManage Enterprise Integration for VMware vCenter
- OpenManage Integration for Microsoft System Center
- OpenManage Integration with Windows Admin Center
Mobility
- OpenManage Mobile
Tools
- iDRAC RESTful API with Redfish
- IPMI
- RACADM CLI
- Dell System Update
- Enterprise Catalogs
- Dell Repository Manager
OpenManage Integrations
- BMC Truesight
- Microsoft System Center
- OpenManage Integration with ServiceNow
- RedHat Ansible Modules
- Terraform Providers
- VMware vCenter and vRealize Operations Manager
Power Supplies
- 300 W Bronze 100-240 V AC, cabled
- 500 W Platinum 100-240 V AC, cabled
Ports
- Network Options
- 2 x 1GbE LOM on Planar
- Front Ports
- 1 x iDRAC Direct (Micro-AB USB) port
- 1 x USB 3.2 Gen1

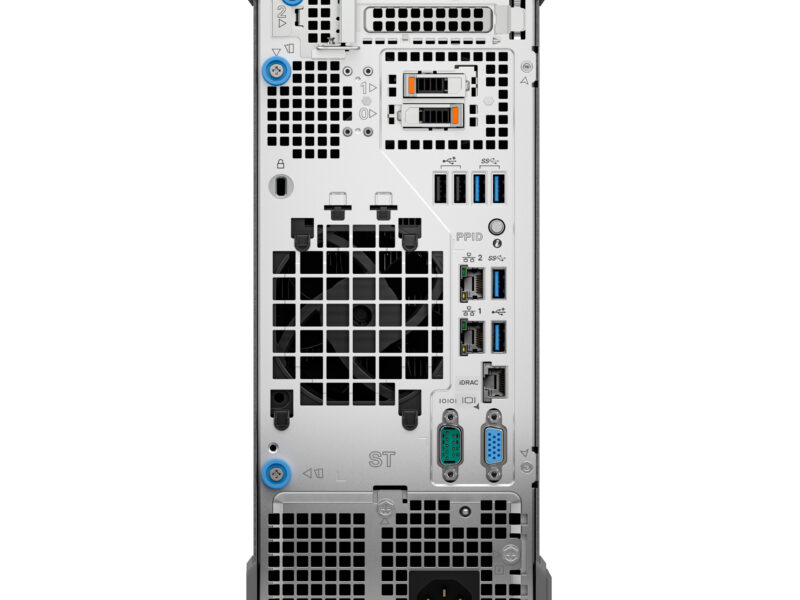

- Rear Ports
- 1 x Dedicated iDRAC (RJ-45) port
- 3 x USB 2.0
- 3 x USB 3.2 Gen1
- 1 x Serial
- 1 x VGA
- 2 x Ethernet ports
- Internal Ports
- 1 x USB 3.2 Gen1
Slots
- PCIe
- Up to two PCIe slots:
- Slot 1: 1 x 8 slot with x4 bandwidth, Half Height, Half Length
- Slot 2: 1 x 16 slot with x16 bandwidth, Half Height, Half Length
Chassis
- Fans
- Up to two fans

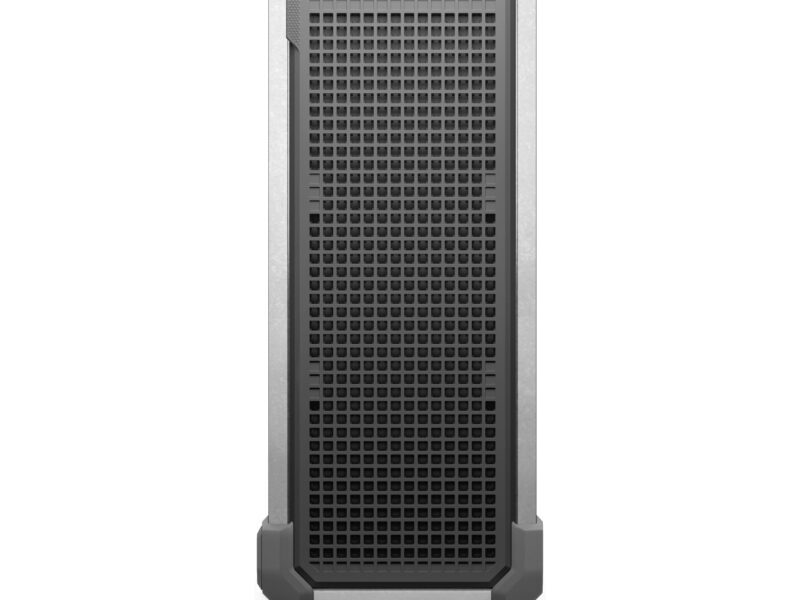

Bezel
- Filter Bezel
Form Factor
- 3U tower server
Dimensions & Weight
- Height
- 332.5 mm (13.09 inches) (with feet)
- 329.5 mm (12.97 inches)(without feet)
- Width
- 132.52 mm (5.21 inches)
- Depth
- 408.8 mm (16.09 inches) (with bezel)
- 403.8 mm (15.89 inches) (without bezel)
- Weight
- 11.64 kg (25.66 lbs.)
