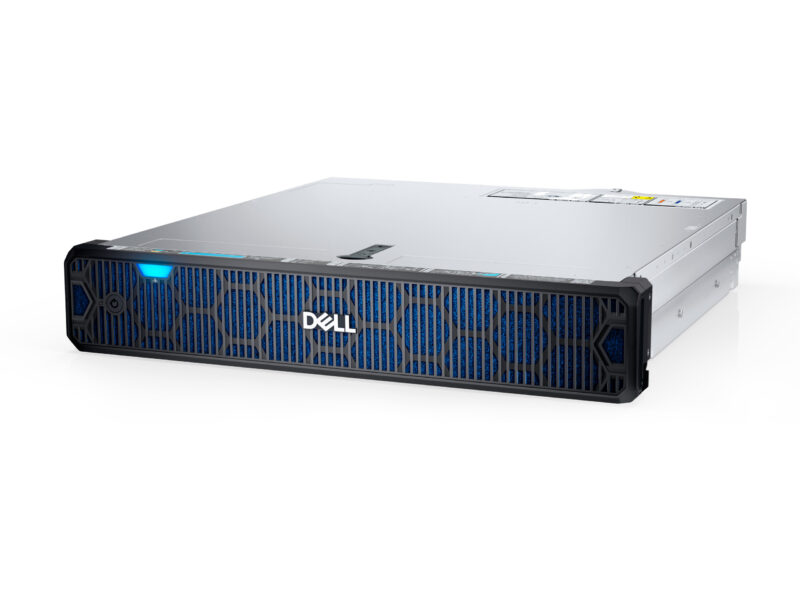

Dell PowerEdge XR7620 Edge Server

Processor

• Two 4th Generation Intel Xeon Scalable processors with up to 32 cores per processor

Operating System

• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• RedHat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi

Chipset

• Intel C741 Chipset

Accelerators

• Up to 4 x 150 W (Single Width Full Height/Half Length, Low Profile) GPU or up to 2 x 300 W (Double Width Full Height/Full Length)

Memory

• DIMM Speed
  • Up to 4800 MT/s
• Memory Type
  • RDIMM
• Memory Module Slots
  • 16 DDR5 DIMM slots
• Maximum RAM
  • RDIMM 1 TB max

Storage

• Front Bays
  • Up to 8 x E3.S NVMe direct drives, 51.2 TB max
  • Up to 4 x 2.5-inch SAS/SATA or NVMe SSD drives, 61.44 TB max

Storage Controllers

• Internal Controllers
  • PERC H965i
  • PERC H755
  • PERC H355
  • HBA355i
• External Controllers
  • N/A
• Software RAID
  • S160
• Internal Boot
  • Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs
  • USB

Security

• Cryptographically signed firmware
• Secure Boot
• Secure Erase
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
• Secured Component Verification (Hardware integrity check)
• Data at Rest Encryption (SEDs with local or external key mgmt)

Management

• Embedded / At-the-Server
• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module

Consoles

• OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin
• CloudIQ for PowerEdge plug in

Mobility

• OpenManage Mobile

Tools

• iDRAC RESTful API with Redfish
• IPMI
• RACADM CLI
• Dell System Update
• Enterprise Catalogs
• Dell Repository Manager

OpenManage Integrations

• Microsoft System Center
• OpenManage Integration with ServiceNow
• RedHat Ansible Modules
• Terraform Providers
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center
• OpenManage Enterprise Integration for VMware vCenter
• VMware vCenter and vRealize Operations Manager

Power Supplies

• 1800 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant
• 1400 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
• 1100 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant
• 1100 W -48 – (-60) VDC, hot swap redundant

Continuous Operation

• -5°C to +55°C
• Minimum cold boot temperature at ≥ 5°C

Fans

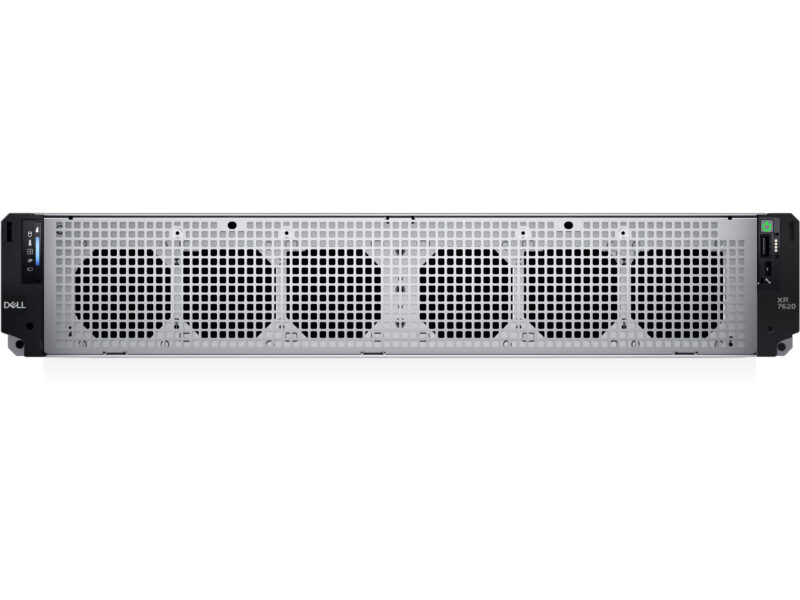

• Six cooling fans
• All are cold swap fans

Cooling options

• Air cooling

Ports

• Network Options
  • 1 x OCP 3.0 (optional)
  • 2 x 1GbE LOM
• Front Ports
  • Rear Accessed Configuration
    • 1 x iDRAC Direct (Micro-AB USB 2.0) port
    • 1 x USB 2.0
  • Front Accessed Configuration
    • 2 x USB 2.0
    • 1 x iDRAC dedicated port
    • 1 x USB 3.0
    • 1 x Serial (Optional, on Slot 5)
    • 1 x VGA
    • 1 x iDRAC Direct (Micro-AB USB) port
• Rear Ports
  • Rear Accessed Configuration
    • 1 x USB 2.0
    • 1 x USB 3.0
    • 1 x iDRAC dedicated port
    • 1 x Serial (Optional, on Slot 5)
    • 1 x VGA
  • Front Accessed Configuration
    • N/A
• Internal Ports
  • 1 x USB 3.0 (optional)

Slots

• PCIe
  • 2 CPU configuration: Up to 5 PCIe slots (4 x16 Gen4/5, 1 x16 LP Gen4)

Video

• 1 x VGA

Bezel

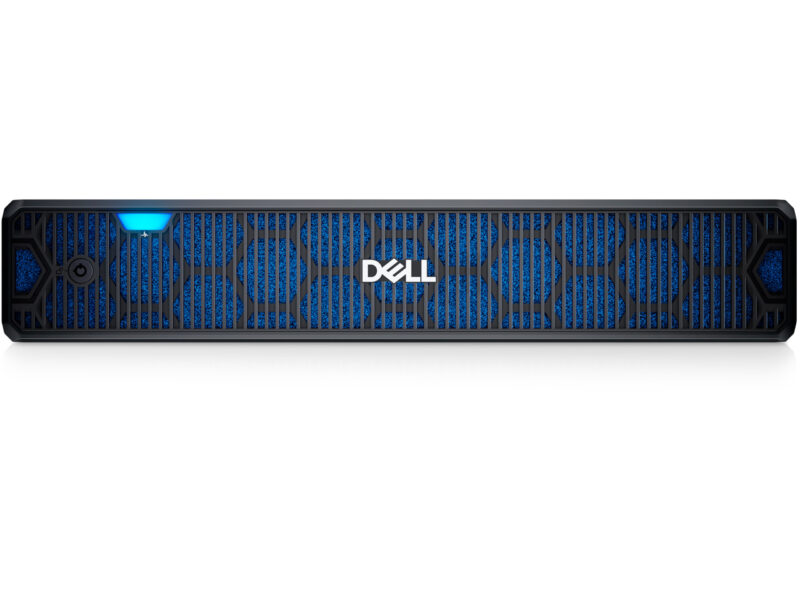

• Optional security bezel with dust filter (Dust sensor is available only for Front Accessed configuration systems)

Form Factor

• 2U rack server

Dimensions & Weight

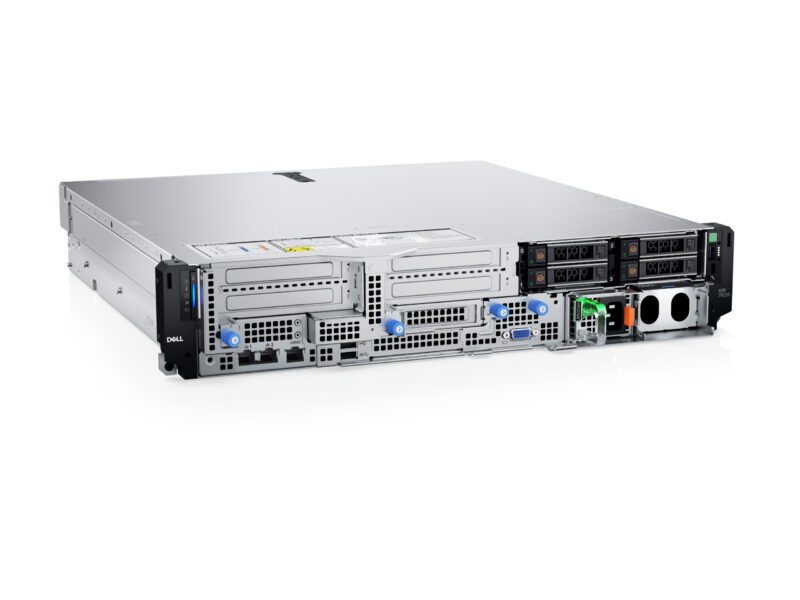

• Rear Accessed configuration
  • Height:
    • 86.8 mm (3.41 inches)
  • Width:
    • 482.6 mm (19 inches)
  • Depth:
    • 448.8 mm (17.6 inches) ear to rear wall
    • 496.3 mm (19.53 inches) with bezel
    • 471.8 mm (18.57 inches) without bezel
  • Weight:
    • Max 21.16 kg (46.64 pounds)
• Front Accessed configuration
  • Height:
    • 86.8 mm (3.41 inches)
  • Width:
    • 482.6 mm (19 inches)
  • Depth:
    • 572 mm (22.51 inches) with bezel
    • 471.8 mm (18.57 inches) without bezel
  • Weight:
    • Max 21.16 kg (46.64 pounds)

Rack Support

• Sliding, stab-in rails with optional CMA and SRB for 4-post racks with rack post distance of 470 – 750 mm. These rails also support optional CMA and SRB for 2-post racks.
• Sliding, stab-in rails for rugged transit case (MIL 901E certified in (Pelican Custom Rack 25-036329-01) with rack post distance of 425 – 558 mm.
