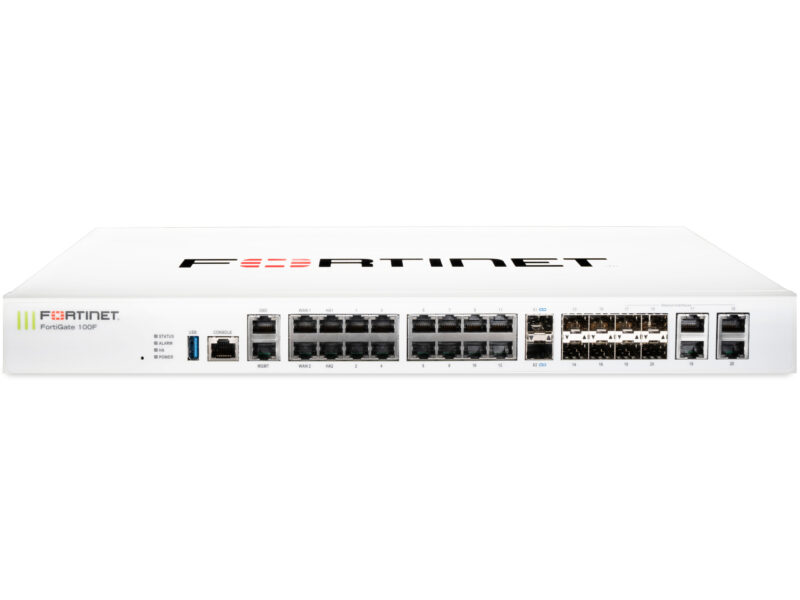

Fortinet FortiGate 100F Firewall

Interfaces and Modules

• Hardware Accelerated GE RJ45 Ports
  • 12
• Hardware Accelerated GE RJ45 Management / HA / DMZ Ports
  • 1 / 2 / 1
• Hardware Accelerated GE SFP Slots
  • 4
• Hardware Accelerated 10 GE SFP+ FortiLink Slots (default)
  • 2
• GE RJ45 WAN Ports
  • 2
• GE RJ45 or SFP Shared Ports
  • 4
• USB Port
  • 1
• Console Port
  • 1
• Onboard Storage
  • 0
• Trusted Platform Module (TPM)
  • None
• Bluetooth Low Energy (BLE)
  • None
• Signed Firmware Hardware Switch
  • None
• Included Transceivers
  • 0

System Performance – Enterprise Traffic Mix

• IPS Throughput
  • 2.6 Gbps
• NGFW Throughput
  • 1.6 Gbps
• Threat Protection Throughput
  • 1 Gbps

System Performance and Capacity

• IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)
  • 20 / 18 / 10 Gbps
• Firewall Latency (64 byte, UDP)
  • 4.97 μs
• Firewall Throughput (Packet per Second)
  • 15 Mpps
• Concurrent Sessions (TCP)
  • 1.5 Million
• New Sessions/Second (TCP)
  • 56 000
• Firewall Policies
  • 10 000
• IPsec VPN Throughput (512 byte)
  • 11.5 Gbps
• Gateway-to-Gateway IPsec VPN Tunnels
  • 2000
• Client-to-Gateway IPsec VPN Tunnels
  • 16 000
• SSL-VPN Throughput
  • 1 Gbps
• Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)
  • 500
• SSL Inspection Throughput (IPS, avg. HTTPS)
  • 1 Gbps
• SSL Inspection CPS (IPS, avg. HTTPS)
  • 1800
• SSL Inspection Concurrent Session (IPS, avg. HTTPS)
  • 135 000
• Application Control Throughput (HTTP 64K)
  • 2.2 Gbps
• CAPWAP Throughput (HTTP 64K)
  • 15 Gbps
• Virtual Domains (Default / Maximum)
  • 10 / 10
• Maximum Number of FortiSwitches Supported
  • 32
• Maximum Number of FortiAPs (Total / Tunnel)
  • 128 / 64
• Maximum Number of FortiTokens
  • 5000
• High Availability Configurations
  • Active-Active
  • Active-Passive
  • Clustering

Dimensions and Power

• Height x Width x Length (inches)
  • 1.73 x 17 x 10
• Height x Width x Length (mm)
  • 44 x 432 x 254
• Weight
  • 7.25 lbs (3.29 kg)
• Form Factor (supports EIA/non-EIA standards)
  • Rack Mount, 1 RU
• AC Power Supply
  • 100–240V AC, 50/60 Hz
• Power Consumption (Average / Maximum)
  • 26.5 W / 29.5 W
• Current (Maximum)
  • 100V / 1A, 240V / 0.5A
• Heat Dissipation
  • 100.6 BTU/h
• Redundant Power Supplies
  • Yes (Default dual non-swappable AC PSU for 1+1 Redundancy)
• Power Supply Efficiency Rating
  • 80Plus Compliant

Operating Environment and Certifications

• Operating Temperature
  • 32°F to 104°F (0°C to 40°C)
• Storage Temperature
  • -31°F to 158°F (-35°C to 70°C)
• Humidity
  • 10% to 90% non-condensing
• Noise Level
  • 40.4 dBA
• Forced Airflow
  • Side to Back
• Operating Altitude
  • Up to 10 000 ft (3048 m)
• Compliance
  • FCC Part 15B
  • Class A
  • CE
  • RCM
  • VCCI
  • UL/cUL
  • CB
  • BSMI
• Certifications
  • USGv6/IPv6
