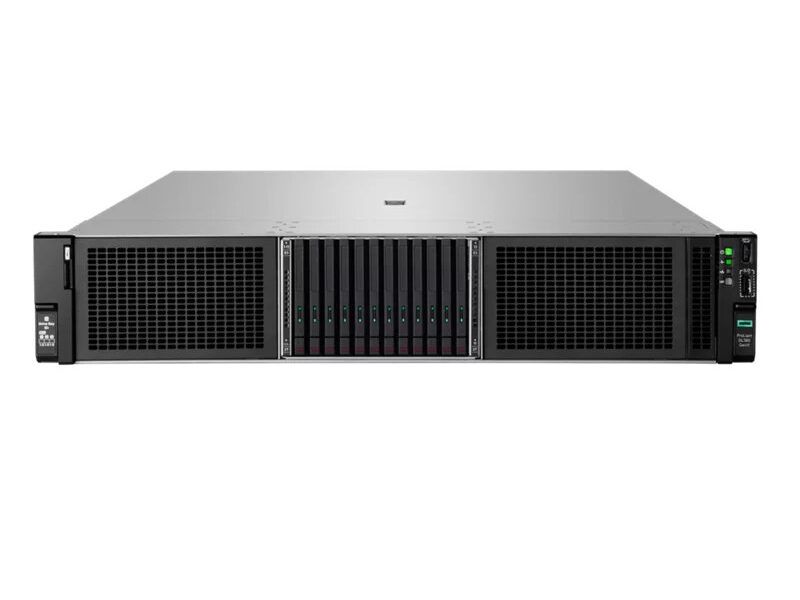

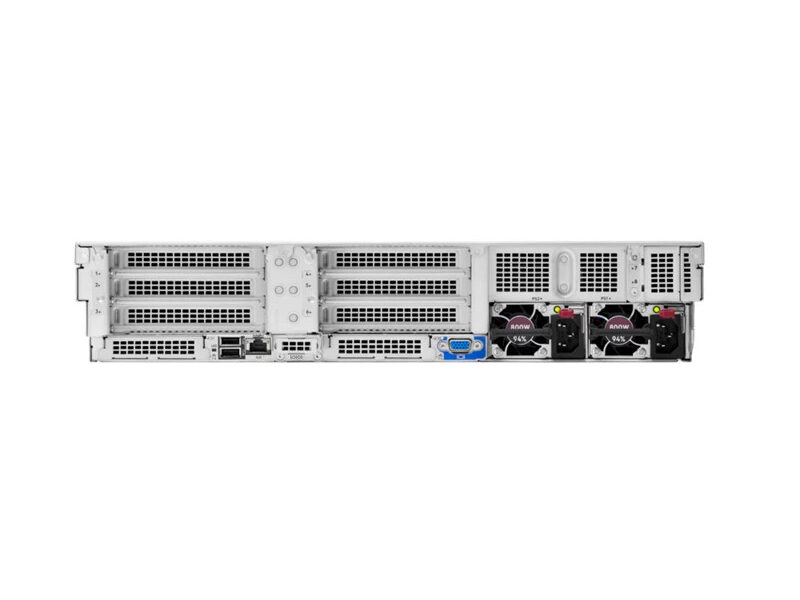

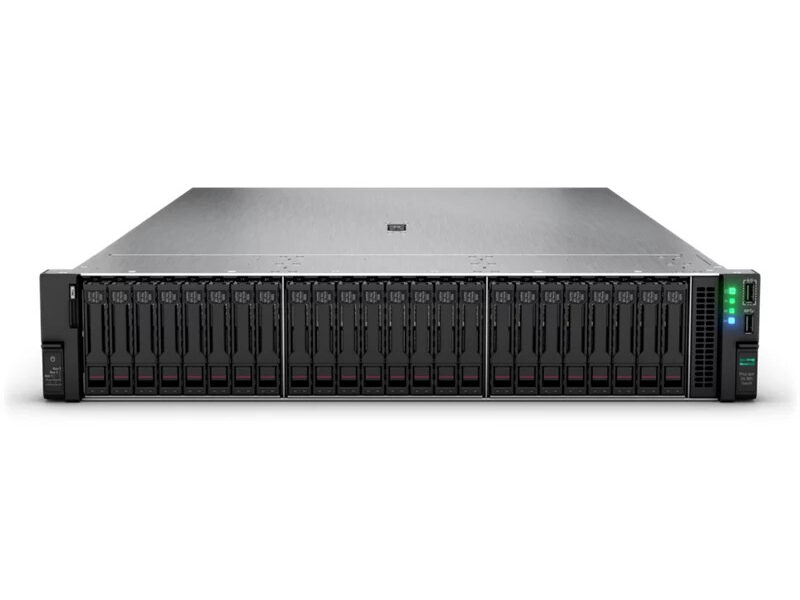

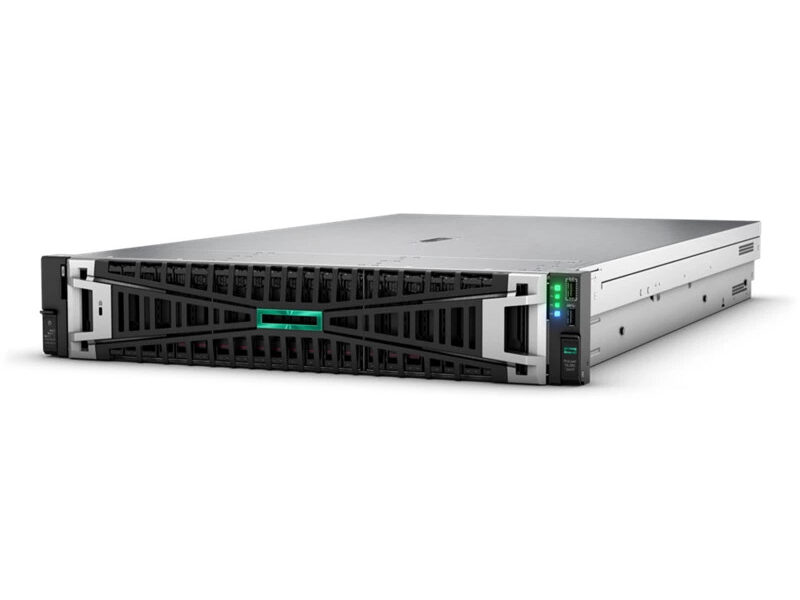

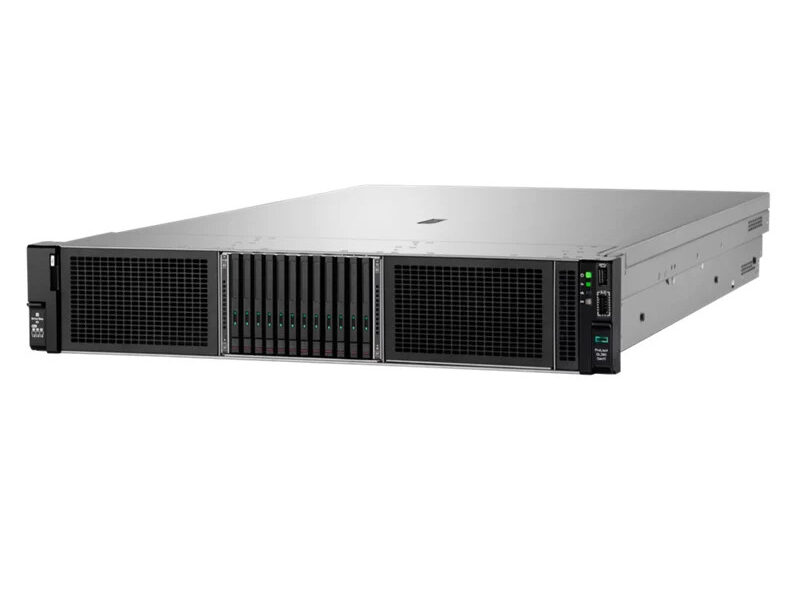

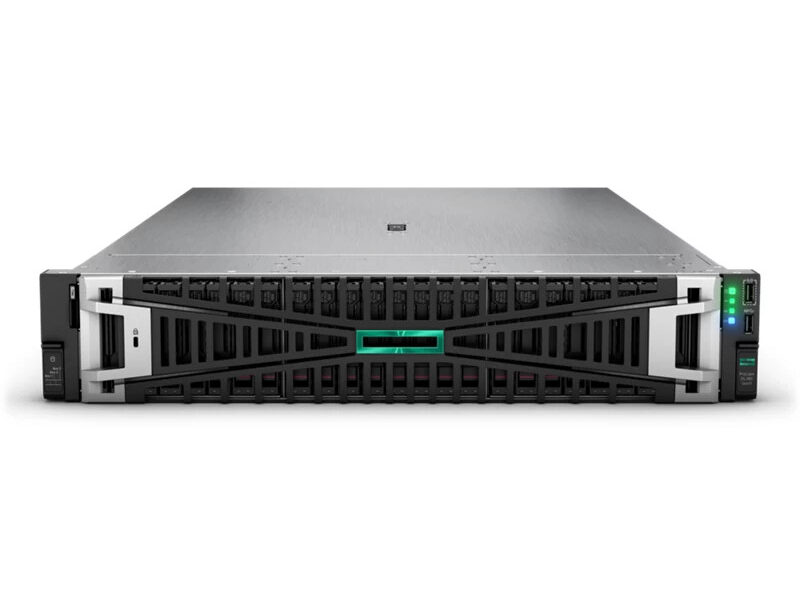

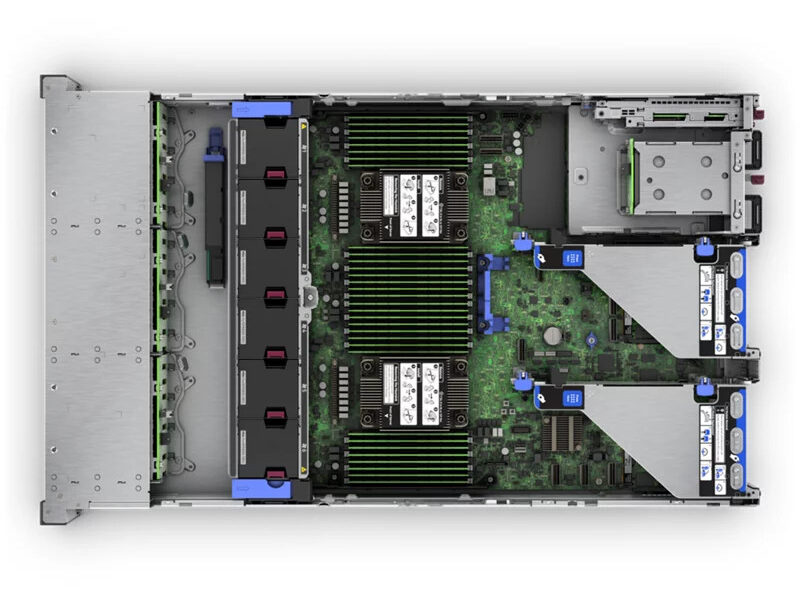

HPE ProLiant DL380 Gen11 Rack Server

Management Software

• Infrastructure management
  • HPE iLO Standard with intelligent provisioning (embedded)
  • HPE OneView Standard (requires download) (standard)
  • HPE iLO Advanced
  • HPE OneView Advanced (optional, requires licenses)
  • HPE COM

Security

• Security
  • HPE TPM 2.0 standard on motherboard
  • Optional locking Bezel Kit
  • Intrusion Detection Kit.

Server Controllers

• Network controller
  • 1 Gb in PCIe adapter or OCP 3.0 form factor
  • 10 Gb in PCIe adapter or OCP 3.0 form factor
  • 10/25 Gb in PCIe adapter or OCP 3.0 form factor
  • 100 Gb in PCIe adapter or OCP 3.0 form factor
  • 200 Gb in PCIe adapter or OCP 3.0 form factor
• Storage controller
  • HPE SR932i-p
  • HPE MR216i-o
  • HPE MR416i-o
  • HPE MR216i-p
  • HPE MR416i-p
  • HPE MR408i-o

Server Cooling

• System fan
  • Hot-plug redundant fans
    • Standard Fan Kit
    • High Performance Fan Kit

Server Drives

• Drive supported
  • 8 or 12 LFF SAS/SATA/SSD
  • 8, 16, or 24 SFF SAS/SATA/SSD
  • 6 SFF rear drive optional
  • 2 SFF rear-drive optional
  • 20 SFF NVMe optional
  • NVMe support via Express Bay will limit maximum drive capacity, depending on model.
• Optical drive type
  • Optional DVD-ROM Optional via Universal Media Bay External support only

Server Expansions

• Expansion slots
  • Up to 8 PCIe Gen5
  • 2 OCP 3.0

Server Form Factor

• Form factor
  • 2U Rack

Server Memory

• Memory type
  • HPE DDR5 Smart Memory
• Maximum memory
  • 8 TB with 256 GB DDR5
• Memory slots
  • 32
• Memory protection features
  • RAS – Advanced ECC, online spare, mirroring, combined channel (lockstep) functionality
  • HPE Fast Fault Tolerant Memory (ADDDC)
  • Intel Optane Persistent Memory

Server Power

• Power supply type
  • 800W Dual hot-plug redundant 1+1 HPE Flexible Slot Power Supplies
  • 1000W Dual hot-plug redundant 1+1 HPE Flexible Slot Power Supplies
  • 1600W Dual hot-plug redundant 1+1 HPE Flexible Slot Power Supplies

Processor

• Processor type
  • Intel®
• Processor family
  • 5th Gen Intel® Xeon® Scalable Processors and 4th Gen Intel® Xeon® Scalable Processors
• Processor number
  • 1 or 2
• Processor core available
  • 16 to 60 core, depending on processor
• Processor speed
  • 3.1 GHz maximum, depending on processor
• Processor cache
  • 22.5 MB to 112.5 MB L3, depending on processor

Warranty

• Warranty 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: https://support.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage, to supplement the product warranty, is available. For more information, visit https://www.hpe.com/support.
