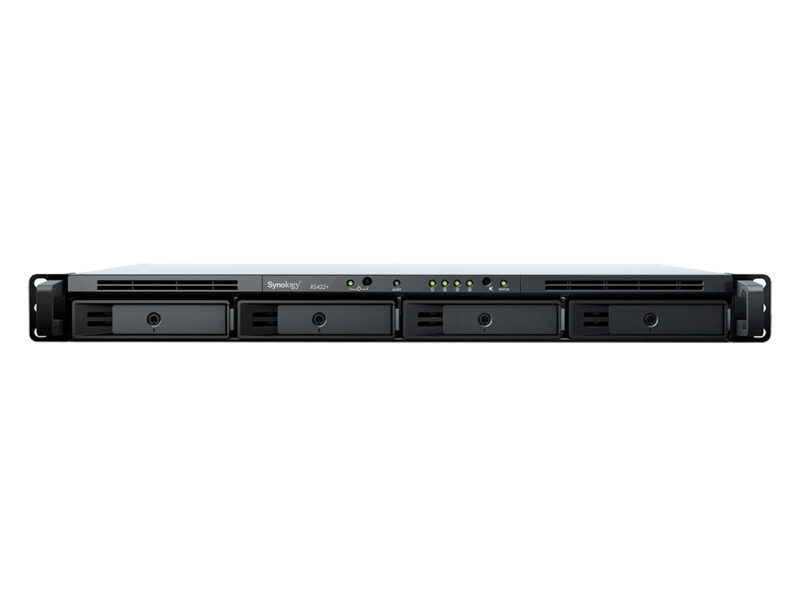

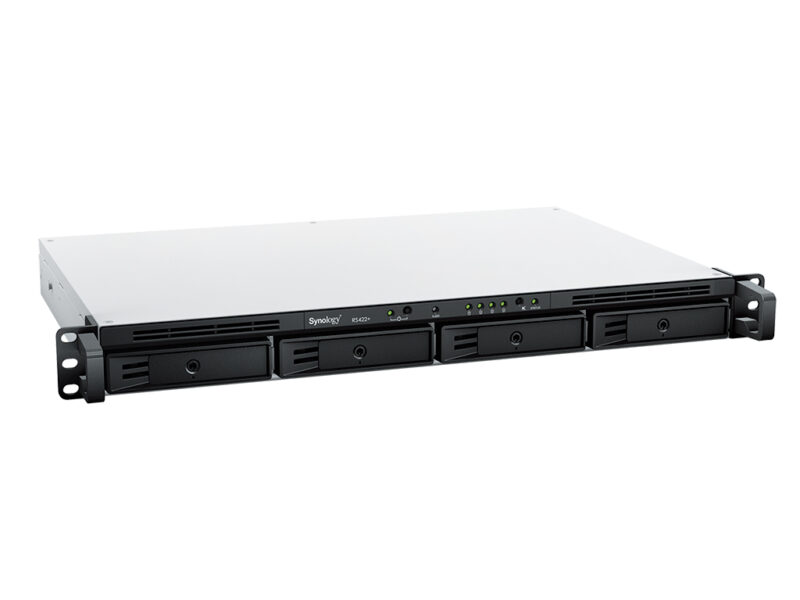

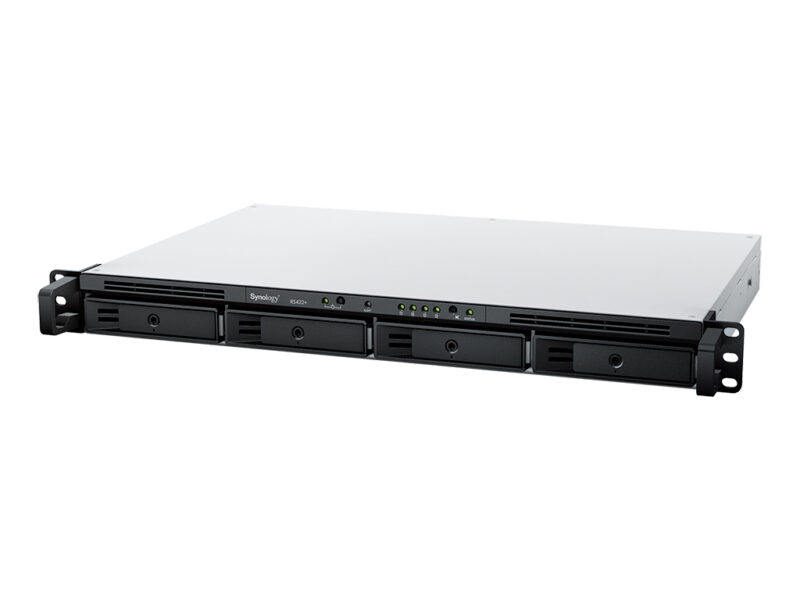

Synology RackStation RS422+ Rack NAS

CPU

• CPU Model
  • AMD Ryzen R1600
• CPU Quantity
  • 1
• CPU Core
  • 2
• CPU Architecture
  • 64-bit
• CPU Frequency
  • 2.6 (base) / 3.1 (turbo) GHz
• Hardware Encryption Engine
  • Yes

Memory

• System Memory
  • 2 GB DDR4 ECC
• Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

• Drive Bays
  • 4
• Compatible Drive Type* (See all supported drives)
  • 3.5″ SATA HDD
  • 2.5″ SATA SSD
• Hot Swappable Drive*
  • Yes
• Notes
  • “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

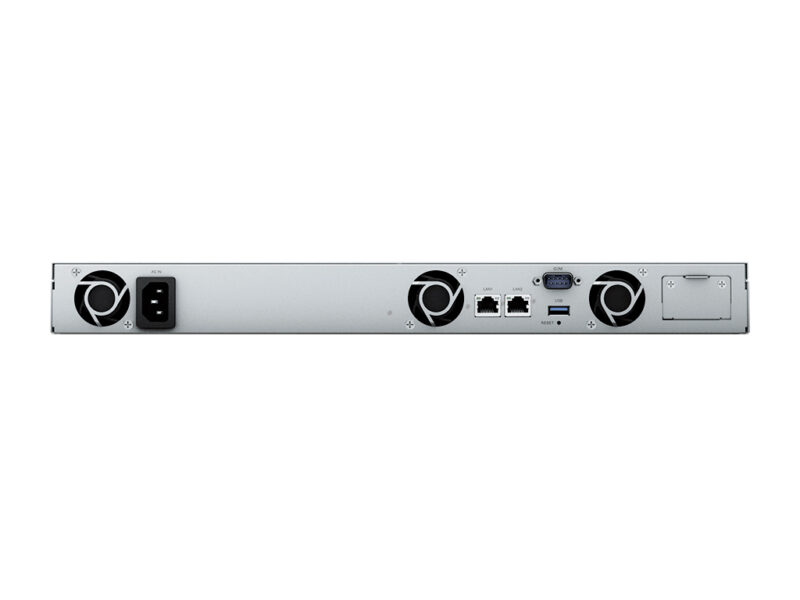

External Ports

• RJ-45 1GbE LAN Port
  • 2
• USB 3.2 Gen 1 Port*
  • 1
• Notes
  • This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
  • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe

• PCIe Expansion
  • 1 x Gen3 x2 network upgrade slot

Appearance

• Form Factor (RU)
  • 1U
• Size (Height x Width x Depth)
  • 44 mm x 478 mm x 327.5 mm
• Weight
  • 4.38 kg
• Rack Installation Support*
  • 4-post 19″ rack (Synology Rail Kit – RKM114/RKS-02)
  • 2-post 19″ rack (direct mounting)
• Notes
  • The rail kit is sold separately

Others

• System Fan
  • 40 mm x 40 mm x 3 pcs
• Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
• Power Recovery
  • Yes
• Noise Level*
  • 28.5 dB(A)
• Scheduled Power On / Off
  • Yes
• Wake on LAN / WAN
  • Yes
• Power Supply Unit / Adapter
  • 100 watts
• AC Input Power Voltage
  • 100 V to 240 V AC
• Power Frequency
  • 50/60 Hz, Single Phase
• Power Consumption
  • 37.93 watts (Access)
  • 13.43 watts (HDD Hibernation)
• British Thermal Unit
  • 129.42 BTU/hr (Access)
  • 45.83 BTU/hr (HDD Hibernation)
• Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

• Operating Temperature
  • 0°C to 35°C (32°F to 95°F)
• Storage Temperature
  • -20°C to 60°C (-5°F to 140°F)
• Relative Humidity
  • 5% to 95% RH

Certification

• FCC
• CE
• BSMI
• VCCI
• RCM
• UKCA
• EAC
• CCC
• KC

Warranty

• 3-year hardware warranty, extendable to 5 years with Extended Warranty Plus
• Notes
  • The warranty period starts from the purchase date as stated on your purchase receipt.
  • Extended Warranty Plus is only available in Europe and North America. Refer to the Extended Warranty Plus website for details on supported countries/regions.

Environment

• RoHS Compliant

Packaging Content

• Main Unit X 1
• Accessory Pack X 1
• AC Power Cord X 1
• Quick Installation Guide X 1
